Product Details

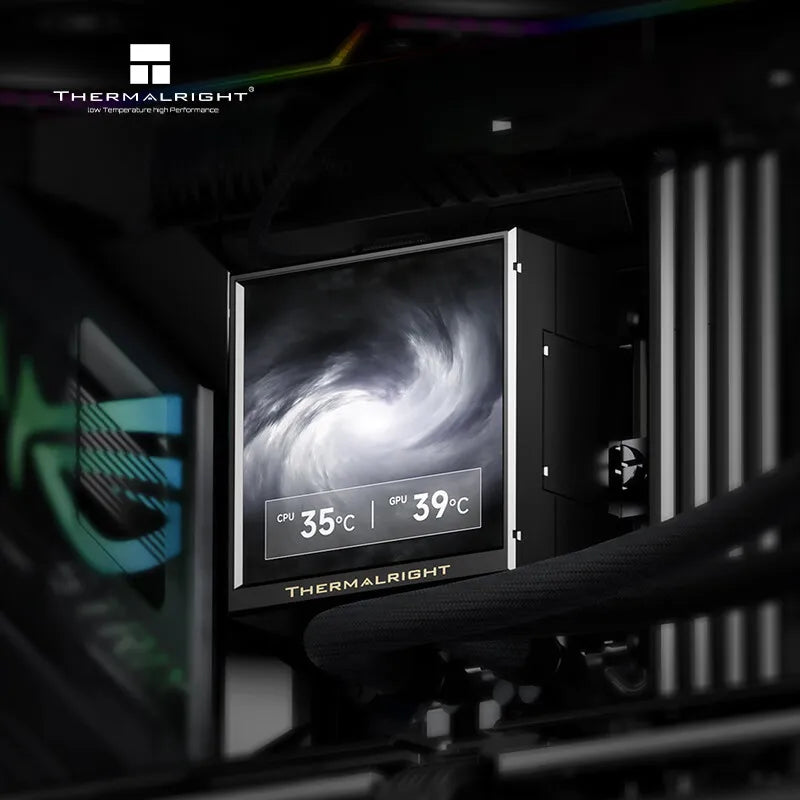

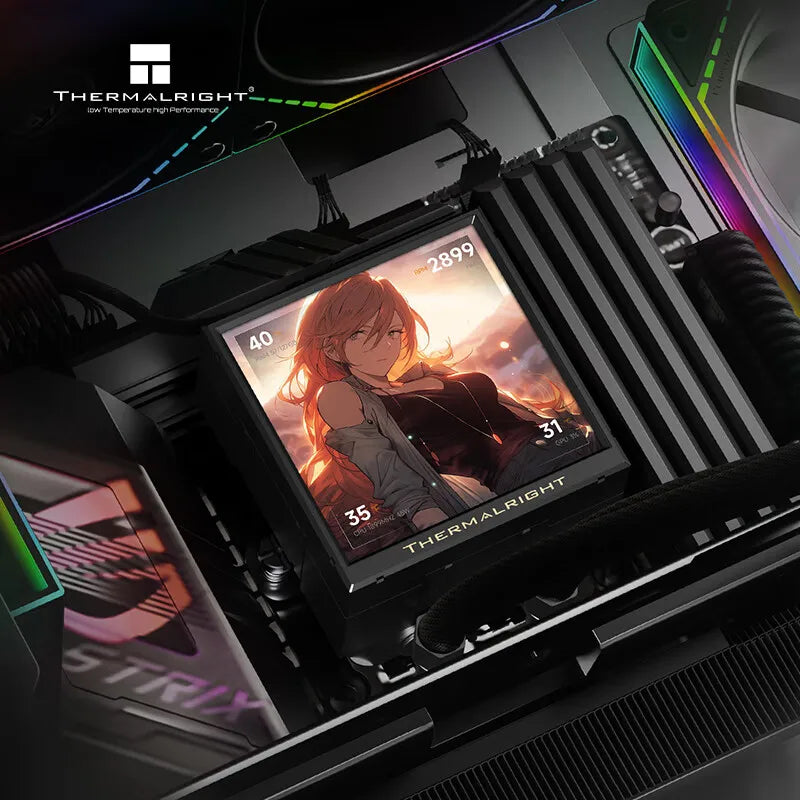

Built-in 3.95-inch IPS display delivers real-time CPU temperature and performance metrics at a glance.
The 480×480 pixel screen integrates directly into the pump head for instant visibility without software.
Monitor thermal data during gaming and heavy workloads without breaking focus or alt-tabbing.
Live Performance Visibility
- Instant Temperature Readout: See CPU temps and system stats on the integrated display without opening monitoring software
- Crystal-Clear Clarity: 480×480 IPS resolution ensures readable metrics from any viewing angle during intense sessions
- Distraction-Free Monitoring: Track thermal performance in real time while gaming or rendering without alt-tabbing
- Addressable RGB Customization: 5V A-RGB lighting syncs with motherboard for cohesive system aesthetics
- Efficient Cooling Performance: 360 mm radiator with three TL-M12Q fans delivers up to 68.9 CFM airflow at under 28.2 dB
Technical Specifications
Radiator
- Size: 360 mm
- Dimensions: 397 × 120 × 27 mm (15.6 × 4.7 × 1.1 inches)
Pump & Cold Plate
- Cold Plate Dimensions: 81 × 79 × 67.6 mm (3.2 × 3.1 × 2.7 inches)
- Pump Speed: 3,000 RPM ±10% maximum
- Pump Connector: 4-Pin PWM
Fans
- Model: TL-M12Q
- Dimensions: 124 × 120 × 25 mm (4.9 × 4.7 × 1.0 inches)
- Speed: 2,000 RPM ±10% maximum
- Airflow: 68.9 CFM maximum
- Air Pressure: 2.21 mmH₂O maximum
- Noise Level: Under 28.2 dB(A)
- Bearing: S-FDB
- Connector: 4-Pin PWM
Display & Lighting
- Screen: 3.95-inch IPS
- Resolution: 480 × 480 pixels
- Refresh Rate: 60 Hz
- RGB Support: 5V Addressable RGB (A-RGB)
- RGB Connector: 3-Pin 5V A-RGB
Materials & Thermal Properties
- Heatsink Material: Copper and aluminum
- Thermal Compound Conductivity: 12.8 W/m·K
CPU Socket Compatibility
- Intel: LGA 1851, LGA 1700, LGA 2066, LGA 2011 Square, LGA 1200, LGA 115x
- AMD: AM5, AM4
