CPU Fans

Keep your PC cool and visually stunning with the TEUCER DL-1 ARGB PC Fan Kit—three synchronized 120mm cooling fans with wireless RGB lighting.

Three quiet, efficient fans work together to pull heat away from your components while dual-sided infinity mirror lighting syncs with your motherboard for a cohesive build aesthetic.

The kit arrives ready to install with daisy-chain wireless connections, shock-absorbing pads, and full PWM speed control—no complex wiring or software required.

Cooling That Looks as Good as It Works

• Whisper-Quiet Operation: Runs at just 29 dBA maximum, so your build stays cool without constant fan noise.
• Synchronized RGB Lighting: Dual-sided infinity mirrors sync directly to your motherboard's 5V ARGB header for unified color control.
• Reliable Long-Term Performance: Hydraulic bearings rated for up to 100,000 hours of continuous operation.
• Flexible Speed Control: PWM support lets you adjust fan speed from 800 to 2,000 RPM based on your cooling needs.
• Vibration-Free Installation: Silicone shock-absorbing corner pads reduce vibration and noise transmission to your case.

Technical Specifications

Product Identity

• Brand: TEUCER
• Model: DL-1
• Type: PWM ARGB Case / Radiator Cooling Fan Kit
• Pack Contents: 3 × 120 mm fans, 1 × connection cable
• Available Colors: Black, White

Fan Specifications

• Fan Size: 4.72 × 4.72 × 0.98 inches (120 × 120 × 25 mm)
• Fan Blades: 7
• Bearing Type: Hydraulic (fluid)
• Bearing Lifespan: Up to 100,000 hours
• Speed Range: 800–2,000 RPM (±10%)
• Speed Control: PWM supported

Cooling Performance

• Maximum Airflow: 58.36 CFM (99.2 m³/h)
• Maximum Static Pressure: 2.07 mmH₂O
• Maximum Noise Level: 29 dBA (typical ~28 dBA)

Power & Connectors

• Fan Voltage: 12 V DC
• Fan Current: 0.19 A
• LED Voltage: 5 V DC
• LED Current: 0.60 A
• Fan Connector: 4-pin PWM
• Lighting Connector: 5 V 3-pin Addressable RGB (ARGB)

Lighting & Installation

• Lighting Design: Dual-sided infinity mirror ARGB with center infinity mirror effect
• Motherboard Sync: 5 V 3-pin ARGB motherboard synchronization supported
• Connection Type: Wireless pin-to-pin daisy-chain
• Vibration Reduction: Silicone shock-absorbing corner pads

Compatibility & Safety

• Compatible With: PC cases, CPU air coolers, liquid cooling radiators
• Insulation Class: Class A

Maximize cooling in tight spaces with this ultra-slim performance fan. Engineered for compact builds and low-profile coolers, it delivers efficient airflow without sacrificing your system's design. The advanced fluid dynamic bearing ensures whisper-quiet operation and exceptional longevity, keeping your PC cool and silent for years. PWM speed control adapts to your thermal needs automatically. Ideal for mini-ITX enthusiasts who demand premium cooling in minimal footprint.

General Information

• Brand: TEUCER
• Model: TE-12012

Physical Specifications

• Fan Size: 120 × 120 × 12 mm (4.7 × 4.7 × 0.47 in)
• Blade Quantity: 15

Bearing and Durability

• Bearing Type: S-FDB (Fluid Dynamic Bearing)
• Fan Lifetime: 100,000 hours

Electrical Specifications

• Rated Voltage: 12 V DC
• Rated Current: 0.19 A (±0.02 A)
• Power Connector: 4-Pin PWM

Performance Characteristics

• Fan Speed Range: 500–1800 RPM
• Airflow: 45.8 CFM (77.8 m³/h)
• Static Pressure: 1.42 mmH₂O (0.056 inH₂O)
• Noise Level: 30.5 dBA

Control Features

• Speed Control: PWM intelligent speed regulation

Application

• Application: PC case cooling, radiator cooling

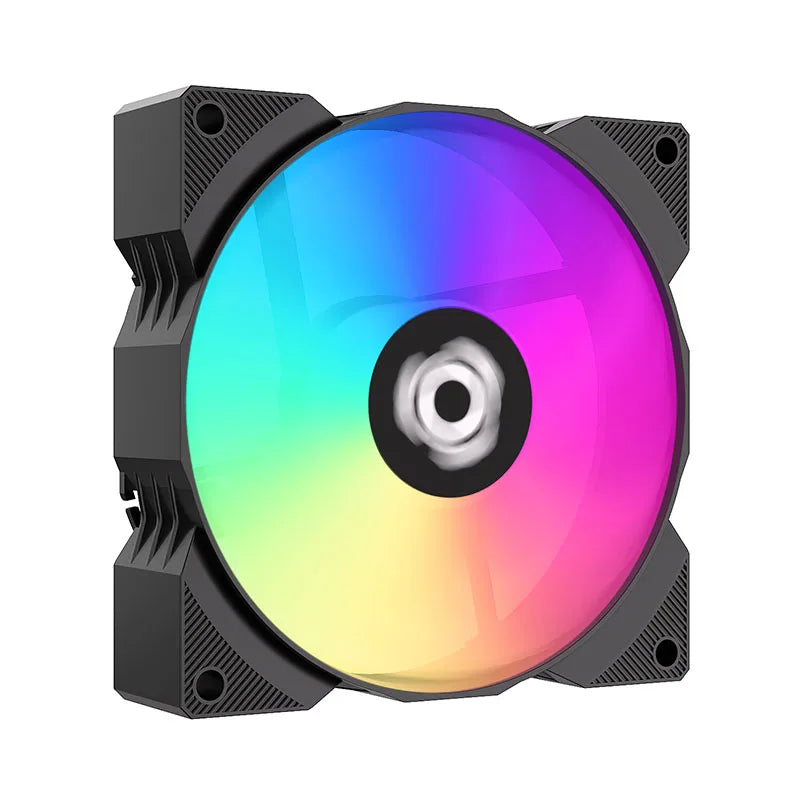

The TEUCER T9025 ARGB 90mm CPU Fan provides efficient cooling for your processor while enhancing your PC's look with customizable ARGB lighting. Its compact 90mm size fits various builds, helping maintain optimal temperatures and system stability. Easy to install and quiet in operation, this fan supports your computer’s performance and aesthetics simultaneously.

General Information

• Brand: TEUCER
• Model Number: T9025
• Color: Black / White

Physical Specifications

• Fan Size: 90 mm x 25 mm (3.54 x 0.98 in)
• Blade Quantity: 7
• Lines: 2 lines

Performance

• Fan Speed: 800 – 2200 RPM
• Airflow: Max 40.94 CFM
• Fan Pressure: Max 2.16 mmH₂O
• Noise Level: Max 30 dBA (20 dBA typical)
• Fan Life: 100,000 hrs

Technical Details

• Bearing Type: Fluid / Hydraulic Bearing
• Rated Voltage: DC 12V
• Rated Current: 0.14A
• Insulation Type: Class A

Connectivity

• Power Interface: 12V 4-Pin ARGB
• Lighting Interface: 5V 3-Pin ARGB

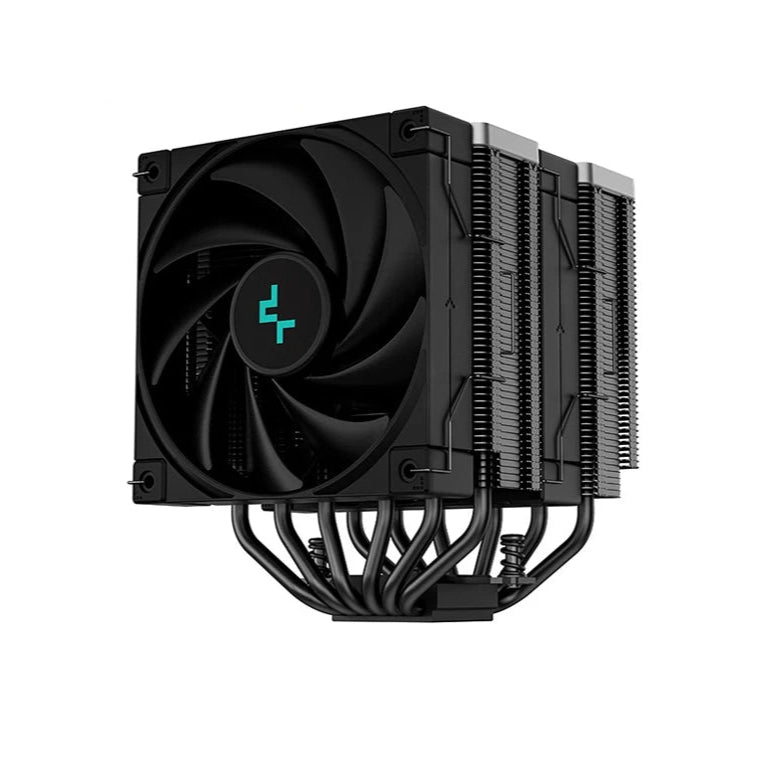

The DeepCool AK620 Twin Tower CPU Air Cooler offers reliable thermal performance for your system with its thoughtfully engineered dual tower design. Its efficient heat dissipation keeps your processor running at optimal temperatures even during demanding tasks, while the balanced airflow system operates quietly to maintain your focus.

The sturdy construction ensures long-lasting durability, giving you peace of mind about your system's cooling needs. Perfect for both gaming setups and productivity workstations where consistent performance matters.

General Information

• Brand: DeepCool
• Model: AK620
• Cooler Type: Twin Tower Air Cooler
• Net Weight: 1456 g (3.21 lbs)

Dimensions

• Product Size: 129 × 138 × 160 mm (5.08 × 5.43 × 6.3 in)
• Heatsink Size: 127 × 110 × 157 mm (5 × 4.33 × 6.18 in)
• Fan Size: 120 × 120 × 25 mm (4.72 × 4.72 × 0.98 in)

Cooling Performance

• TDP: 260W
• Airflow: 68.99 CFM
• Air Pressure: 2.19 mmAq
• Noise Level: ≤28 dB(A)

Fan Specifications

• Blade Quantity: 9 blades
• Fan Speed: 500–1850 RPM ±10%
• Bearing Type: Fluid Dynamic Bearing
• Fan Connector: 4-Pin PWM
• Fan Voltage: 12V DC
• Fan Current: 0.12A
• Fan Power: 1.44W
• Fan Lifespan: 100,000 hours
• Power Interface: 4-Pin

Supported Sockets

• Intel LGA 2066 / 2011-v3 / 2011 / 1700 / 1200 / 1151 / 1150 / 1155
• AMD AM5 / AM4

Heatpipes

• Quantity & Size: 6 × 6 mm copper heatpipes

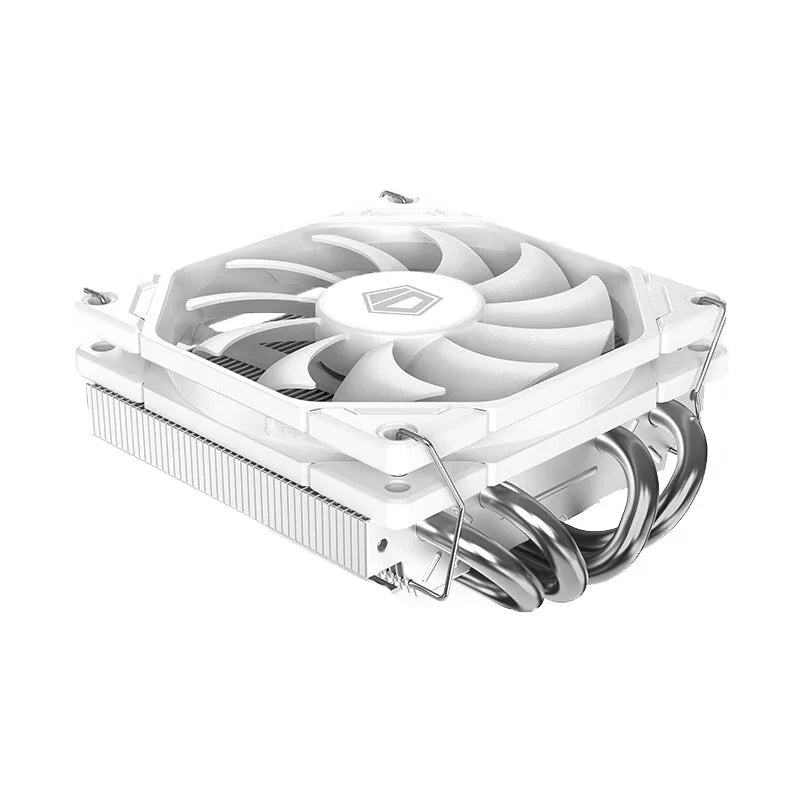

The ID-COOLING IS-40X 45mm Low-Profile CPU Air Cooler is designed to meet your small form factor cooling needs with its remarkably compact profile. At just 45mm tall, this ultra-slim cooler fits perfectly in space-constrained cases while efficiently managing your CPU temperatures.

The thoughtful engineering ensures proper heat dissipation without compromising on performance, helping to maintain system stability during extended use.

You'll enjoy the balance of cooling efficiency and quiet operation, making it an ideal companion for your mini-ITX or HTPC build where space is at a premium.

General Information

• Brand: ID-COOLING
• Model Number: IS-40X-V3
• Cooler Type: Low Profile
• Net Weight: 285 g (~0.63 lbs)

Dimensions

• Cooler Size: 101 × 94 × 45 mm (~4.0 × 3.7 × 1.8 in)
• Fan Size: 92 × 92 × 15 mm (~3.6 × 3.6 × 0.6 in)

Cooling Performance

• TDP: 120W
• Air Volume (Max): 46 CFM
• Noise Level (Max): 35.2 dB(A)

Fan Specifications

• Blade Quantity: 11 blades
• Fan Speed: 800–2800 RPM (±10%)
• Bearing Type: Hydraulic Bearing (Fluid Bearing)
• Fan Life: 100,000 hours
• Power Interface: 4-Pin PWM
• Rated Voltage: 12 VDC
• Operating Voltage: 10.8–13.2 VDC
• Rated Current: 0.2A
• Input Power: 2.4W

Supported CPU Sockets

• Intel LGA1200, LGA1700
• AMD AM4, AM5

Heatpipes

• Quantity & Size: 4 × 6 mm pure copper, nickel-plated

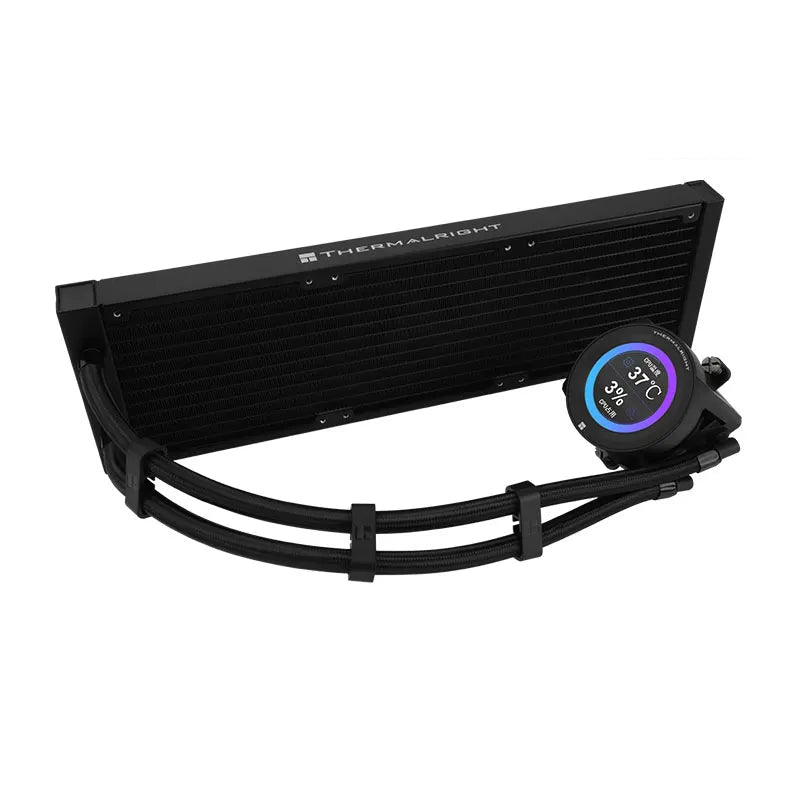

The Thermalright CORE VISION 360 AIO Water Cooler provides exceptional thermal management for your system with its advanced all-in-one liquid cooling solution. Designed to keep your CPU running at optimal temperatures even during intensive tasks, this cooler offers reliable performance you can count on.

The integrated water cooling technology efficiently transfers heat away from your processor, while the thoughtful design makes installation straightforward.

You'll appreciate the balanced combination of cooling efficiency and quiet operation, giving you peace of mind knowing your system is well-protected against thermal throttling during extended use sessions.

General Information

• Brand Name: Thermalright
• Model Number: CORE VISION 360
• Type: CPU All In One Liquid Cooler

Display Features

• Screen: 2.1-inch IPS LCD
• Resolution: 480 × 480
• Brightness: 450 nits
• Color Depth: 24-bit color
• Screen Features: Personalized picture animation display, color accurate, good viewing angles

Radiator Specifications

• Radiator Size: 360 mm (15.75 inches)
• Radiator Dimensions: 397 × 120 × 27 mm (15.63 × 4.72 × 1.06 inches)
• Heatsink Material: Copper & Aluminum

Cold Head Dimensions

• Cold Head Size: 69.2 × 69.2 × 60 mm (2.72 × 2.72 × 2.36 inches)

Pump System

• Pump Interface: 4-Pin
• Pump System: CoreV1.0 independent water pump framework

Fan Specifications

• Fan Model: TL-E12B-S V2
• Fan Size: 120 × 120 × 25 mm (4.72 × 4.72 × 0.98 inches)
• Fan Speed: Up to 2000 RPM (+10%)
• Fan Airflow: 72.37 CFM (122.9 m³/h)
• Fan Static Pressure: 2.87 mm H₂O
• Fan Noise Level: < 27.7 dB(A)
• Fan Bearing Type: S-FDB Bearing
• Fan Interface: 4-Pin PWM
• Lighting Interface: +5V 3-Pin ARGB
• Additional Air Volume (Note): 64.19 CFM (109.1 m³/h)

Supported CPU Platforms

• Intel LGA 1700, 1200, 115X, 1150, 1151, 1155, 1156, 2011, 2066
• AMD AM4, AM5

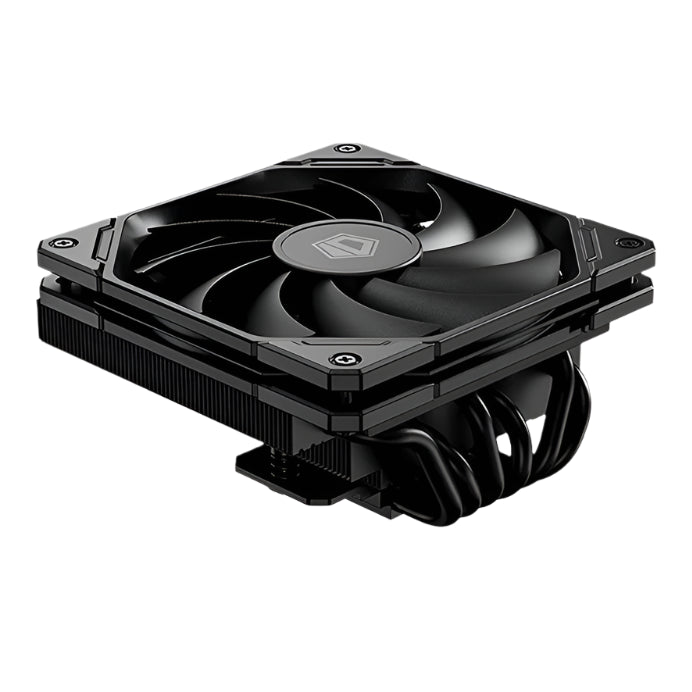

Enhance your PC's performance with the ID Cooling IS-67-XT Push-Type CPU Cooler. Its dual noise reduction fans allow for efficient and quiet cooling, ensuring optimal performance while maintaining a peaceful workspace. A must-have for any serious PC user.

Brand and Model

• Brand Name: ID-COOLING
• Model Number: IS-67-XT

Cooler Type

• Low Profile

Supported CPU Sockets

• Intel: LGA 1150 / 1151 / 1155 / 1156 / 1200 / 1700
• AMD: AM4 / AM5

Performance and Cooling

• Air Volume: 67.58 CFM
• Fan Speed: 500 – 2200 RPM
• TDP (Thermal Design Power): 165W
• Heatpipes: 6 Heatpipes
• Fan Size: 92 mm (3.62 in)
• Blade Quantity: 11 Blades
• Bearing Type: Fluid Bearing

Durability and Noise

• Fan Life: 100,000 Hours
• Noise Level: 30 dBA

Power and Interface

• Power Interface: 4-Pin

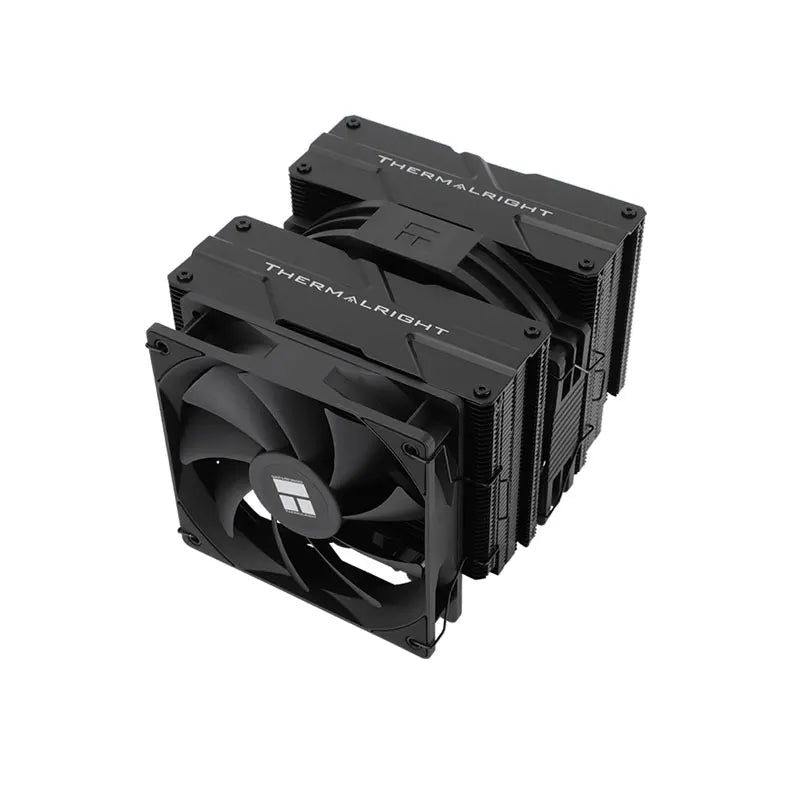

Extend the life of your CPU with the Thermalright Peerless Assassin 140 Air CPU Cooler. Featuring superior cooling technology and a sleek design, this cooler ensures optimal performance and reliability for your computer. Keep your system running smoothly with the Peerless Assassin 140 Air CPU Cooler.

Brand and Model

• Brand: Thermalright
• Model Number: PA 140

Type a

• Cooler Type: Tower
• TDP Support: Up to 275 W

Supported CPUs

• Intel: LGA 1150, 1151, 1155, 1156, 1200, 1700, 2011, 2066
• AMD: Socket AM4, AM5

Heatsink and Heatpipes

• Heatpipes: 6 x 6 mm (0.24 in)
• Heatsink Dimensions: 140 x 132 x 158 mm (5.51 x 5.20 x 6.22 in)
• Copper Base: C1100 Pure Copper, Nickel Plated

Fan Specifications

• Fan Type: TL-C12B V2 / TL-D14CB
• Fan Dimensions: TL-C12B V2: 120 x 120 x 25 mm (4.72 x 4.72 x 0.98 in), TL-D14CB: 140 x 140 x 27 mm (5.51 x 5.51 x 1.06 in)
• Fan Speed: Up to 1500 RPM ± 10%
• Blade Quantity: 9
• Power Connector: 4-pin PWM

Cooling Performance

• Air Flow: TL-C12B V2: 66.17 CFM (max), TL-D14CB: 77.8 CFM (max)
• Air Pressure: TL-C12B V2: 1.53 mm H₂O (0.06 in H₂O), TL-D14CB: 2.09 mm H₂O (0.08 in H₂O)
• Air Volume: 70 (likely in CFM)

Noise and Durability

• Noise Level: 25.6 dBA
• Fan Life: 30,000 hours
• Bearing Type: Fluid Bearing (S-FDB)

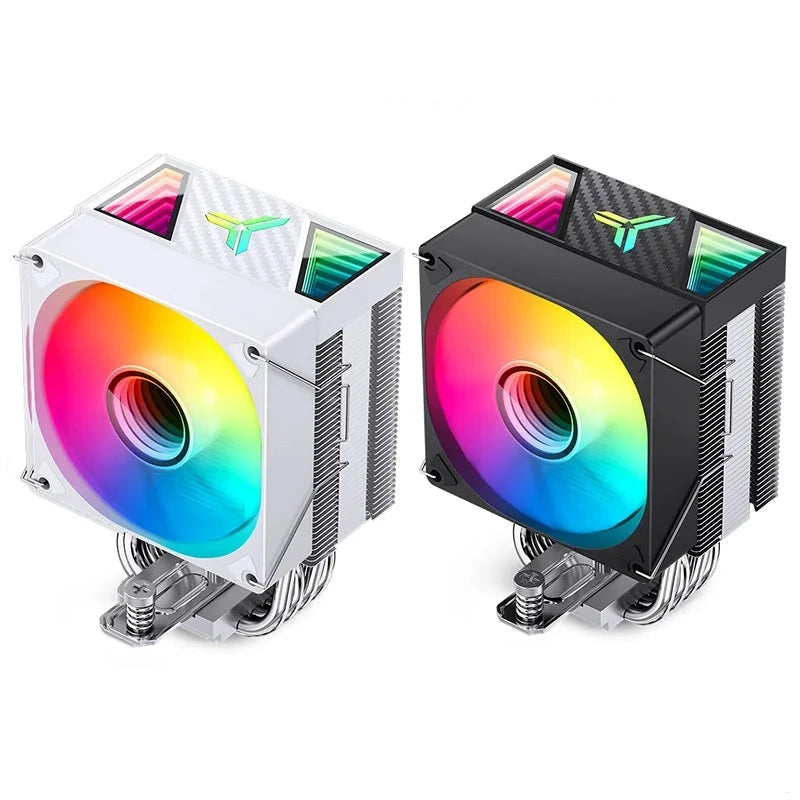

Upgrade your CPU cooling with the Jonsbo CR 1400 V2 ARGB CPU Cooler. Designed for high performance, the ARGB lighting adds a touch of style while keeping your system cool and quiet. Say goodbye to overheating and hello to a sleek, efficient cooling solution for your processor.

Product Information:

• Brand Name: Jonsbo
• Model Number: CR-1400 V2

Radiator Specifications:

• Radiator Size: 92x70x33mm
• Heat Pipe Size: 06mmx4pcs

Fan Specifications:

• Fan Size: 92x92x25mm
• Fan Speed: 800-2200 RPM ±10%
• Fan Air Volume: 11.95-38.2CM
• Fan Pressure: 0.25-2.0mmH20
• Fan Noise: 22.3-33.8dB(A) (MAX)
• Fan Life: 40000h @25°C
• Interface: FAN 4Pin PWM/LED 3Pin ARGB

Power and Voltage:

• Working Current: Fan 0.19A(MAX), LED 0.37A(MAX)
• Operating Voltage: Fan 12V, LED 5V
• Power Consumption: Fan 2.28W(MAX), LED 1.85W(MAX)

Support Scope:

• INTEL: LGA 1700/1200/115X
• AMD: AM4/AM5
