Case Fans

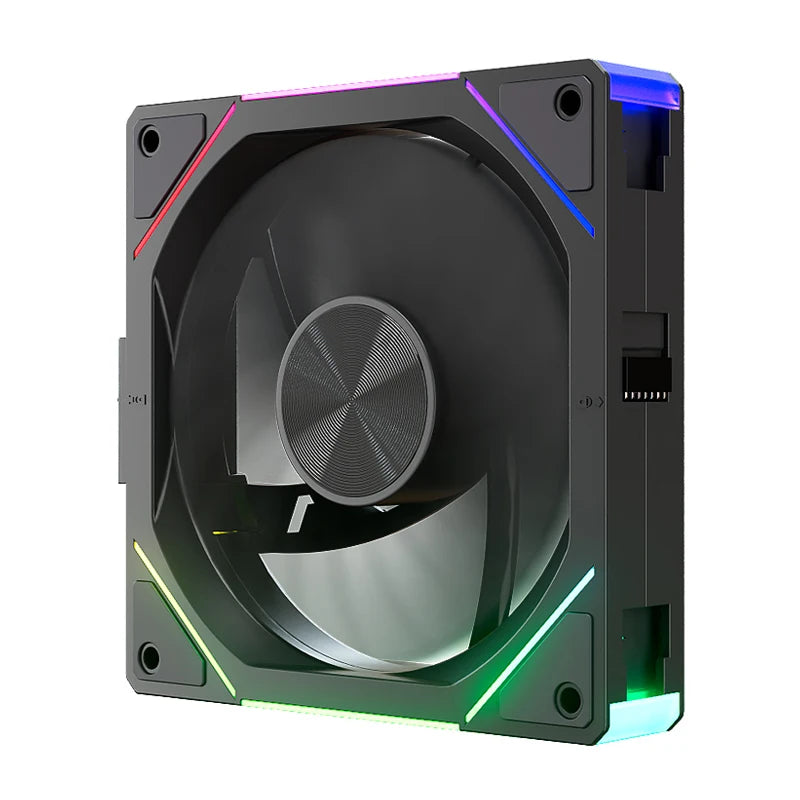

Experience superior cooling with the JONSBO ZW-140 140mm ARGB Wireless Splicing Case Fan. Designed for efficient airflow and vibrant ARGB lighting, this fan enhances your PC’s performance and aesthetics without the clutter of wires. Its wireless design simplifies installation and keeps your build clean, while the customizable lighting adds a dynamic visual touch. Upgrade your system cooling effortlessly with this sleek, powerful fan.

General Information

• Brand: Jonsbo
• Model: ZW-140

Physical Dimensions

• Fan Size: 140 mm × 26 mm × 420 mm (5.51" × 1.02" × 16.54")

Performance

• Fan Speed: 800 - 1400 RPM (±10%)
• Air Volume: 36.8 - 75.4 CFM (62.6 - 128.1 m³/h)
• Wind Pressure: 0.45 - 1.53 mmH₂O
• Noise Level: 20.3 - 32.1 dBA
• Blade Quantity: 7

Electrical Specifications

• Power Consumption: 5.64 W (Fan) + 3.6 W (LED)
• Voltage: 12 V (Fan), 5 V (LED)
• Current: 0.47 A (Fan), 0.72 A (LED)
• Power Interface: 5 V, 3-pin ARGB + PWM 4-pin

Durability & Certification

• Lifespan (MTTF): ≥ 20,000 hours at 25°C
• Certifications: CE, RoHS

The JONSBO ZA-240 ARGB Case Fan combines efficient cooling with vibrant lighting effects to enhance your PC build. Designed for optimal airflow, it helps maintain lower temperatures, improving system stability and performance.

Its customizable ARGB lighting adds a dynamic visual appeal, allowing you to personalize your setup with vivid colors and effects.

 Durable and quiet, this fan ensures reliable operation without distracting noise, making it an excellent choice for both gamers and PC enthusiasts seeking both function and style.

General Information

• Brand Name: JONSBO
• Model: ZA-240
• Color Options: Black and White
• Certification: CE, RoHS

Physical Dimensions

• Fan Size: 242 × 123 × 28 mm (9.53 × 4.84 × 1.10 in)

Performance

• Airflow Volume: 21.46 – 62.40 CFM
• Fan Speed: 700 – 2400 RPM (±10%)
• Wind Pressure: 0.49 – 2.46 mmH₂O
• Noise Level: 21.3 – 37.3 dB(A)
• Bearing Type: Fluid Bearing
• Fan Life (MTTF): ≥ 20,000 hours @ 25°C

Electrical Specifications

• Rated Voltage: Fan: 12V DC, LED: 5V
• Rated Current: Fan: 0.43A, LED: 1.16A
• Power Consumption:Fan: 5.16W, LED: 5.80W

Lighting and Connectivity

• LED Configuration: 52 Ring LEDs + 18 Axis LEDs
• Connector Type: PWM 4-Pin + ARGB 3-Pin
• Lines: 4

Enhance your PC’s cooling and style with the JONSBO ZA-120 ARGB Case Fan. Designed for efficient airflow, it keeps your system cool while the vibrant ARGB lighting adds a dynamic visual flair. Easy to install and compatible with most cases, this fan combines performance and aesthetics to elevate your build.

General Information

• Brand Name: JONSBO
• Model: ZA-120
• Color Options: Black and White
• Certification: CE, RoHS

Physical Dimensions

• Fan Size: 120 × 120 × 28 mm (4.72 × 4.72 × 1.10 in)

Performance

• Airflow Volume: 21.46 – 62.40 CFM
• Fan Speed: 700 – 2400 RPM (±10%)
• Wind Pressure: 0.49 – 2.46 mmH₂O
• Noise Level: 21.3 – 37.3 dB(A)
• Bearing Type: Fluid Bearing
• Fan Life (MTTF): ≥ 20,000 hours @ 25°C

Electrical Specifications

• Rated Voltage: Fan: 12V DC, LED: 5V
• Rated Current: Fan: 0.22A, LED: 0.71A
• Power Consumption: Fan: 2.64W, LED: 3.55W

Lighting and Connectivity

• LED Configuration: 32 Ring LEDs + 9 Axis LEDs
• Connector Type: PWM 4-Pin + ARGB 3-Pin
• Lines: 4

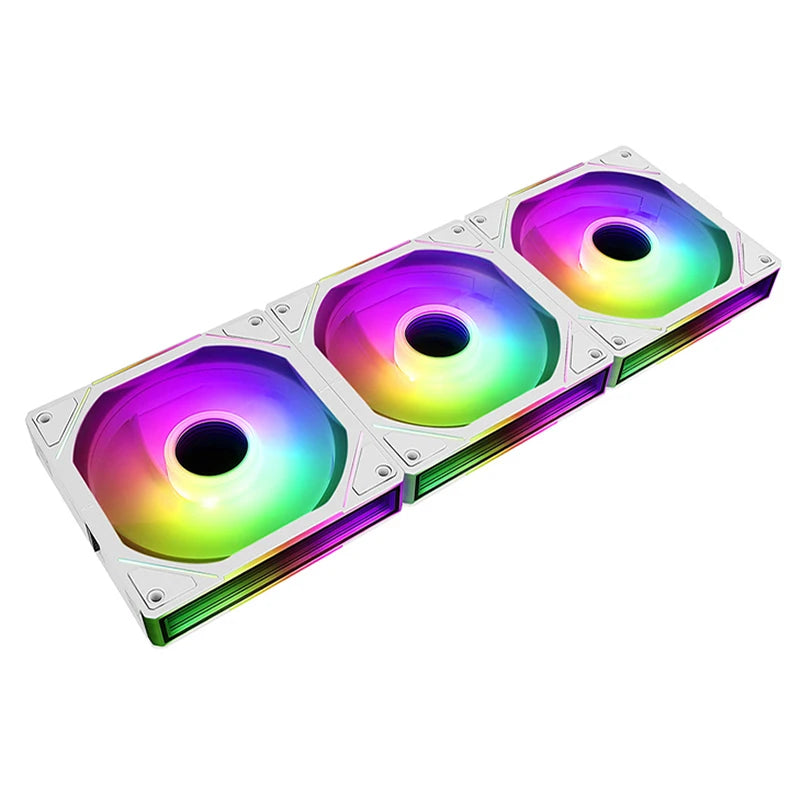

The JONSBO ZA-360 ARGB Case Fan combines efficient cooling with vibrant lighting effects to enhance your PC build. Designed for optimal airflow, it helps maintain lower temperatures, improving system stability and performance.

The ARGB lighting adds a dynamic visual appeal, allowing you to personalize your setup with vivid colors and effects.

Durable and quiet, this fan ensures reliable operation without distracting noise, making it an excellent choice for both gamers and PC enthusiasts seeking both function and style.

General Information

• Brand Name: JONSBO
• Model: ZA-360
• Color Options: Black and White
• Certification: CE, RoHS

Physical Dimensions

• Fan Size: 362 × 123 × 28 mm (14.25 × 4.84 × 1.10 in)

Performance

• Airflow Volume: 21.46 – 62.40 CFM
• Fan Speed: 700 – 2400 RPM (±10%)
• Wind Pressure: 0.49 – 2.46 mmH₂O
• Noise Level: 21.3 – 37.3 dB(A)
• Bearing Type: Fluid Bearing
• Fan Life (MTTF): ≥ 20,000 hours @ 25°C

Electrical Specifications

• Rated Voltage: Fan: 12V DC, LED: 5V
• Rated Current: Fan: 0.61A, LED: 1.35A
• Power Consumption: Fan: 7.32W, LED: 6.75W

Lighting and Connectivity

• LED Configuration: 68 Ring LEDs + 27 Axis LEDs
• Connector Type: PWM 4-Pin + ARGB 3-Pin
• Lines: 4

The Power Train PRISM 8 Pro 120mm ARGB Case Fan features advanced ARGB technology for vibrant lighting, temperature control through PWM, and the ability to sync with other lighting devices, providing efficient and customizable cooling for your computer.

General Information

• Brand Name: Jonsbo
• Model Number: PRISM 8 Pro
• Weight: ~150g (5.29 oz)
• Certification: CE

Performance & Specifications

• Bearing Type: Hydraulic Bearing
• Fan Size: 120 × 120 × 25 mm (4.72 × 4.72 × 0.98 in)
• Blade Quantity: 9
• Fan Speed: 600 - 1500 ±10% RPM
• Airflow: 56.8 CFM ±10%
• Noise Level: 20 dBA (Max)
• Lifespan: 50,000 hours

Power & Voltage

• Voltage: 12V DC
• Rated Current: 0.12A
• Power: 1.4W

Connectivity

• Power Interface: 4-Pin PWM
• Light Interface: 5V 3-Pin ARGB

Enhance your PC's cooling performance with the TEUCER 1PCS JM-1 Cooling Fan. Not only does it keep your system running smoothly, but it also features an ARGB mirror cycle light effect for a stylish touch. Experience top-notch cooling and eye-catching aesthetics with this fan.

Electrical Characteristics:

• Rated Voltage: DC 12V
• Rated Current: 0.16A

Fan Specifications:

• Fan size: 120x120x25mm
• Rotation speed: 800-2000RPM±10%
• Bearing type: Hydro Bearing
• Fan Capacity: MAX 68.5CFM
• Noise level: MAX 29.2dBA
• Fan Air Pressure: MAX 2.05mm/H2O

Connector and Insulation:

• Power Supply Connector: 4PIN/3Pin
• Insulation Type: CLASS A

The TEUCER Prism12025 2000RPM ARGB Cooling Fan is the perfect addition to your cooling system. Its powerful 2000RPM motor provides superior cooling performance, while its ARGB lighting adds an amazing visual element. Keep your system running at peak performance with TEUCER!

Brand Name:

• TEUCER

Electrical Specifications:

• Rated Voltage: DC 12V
• Rated Current: 0.19A
• Power Supply Interface: 4PIN

Physical Dimensions:

• Dimensions: 120 x 120 x 25mm

Performance:

• Speed: 800-2000 RPM ± 10%
• Bearing Type: Hydro Bearing
• Fan Air Volume: MAX 58.36 CFM
• Fan Pressure: MAX 2.07 mm/H2O

Acoustic Performance:

• Noise Level: MAX 29dBA

Insulation:

• Insulation Type: CLASS A

Discover the power of TEUCER 2150RPM Wind Holiness Cooling Fan. Enjoy the maximum cooling performance with its high-speed 2150RPM motor, ensuring your space is cool and comfortable. Keep your environment healthy with its wind holiness cooling effect, and experience a refreshing cooling sensation like the wind on your skin. Make your space cooler with TEUCER!

Brand:

• TEUCER

Electrical Specifications:

• Rated Voltage: DC 12V
• Rated Current: 0.15A

Physical Dimensions:

• Dimensions: 120 x 120 x 25mm

Performance:

• Maximum Speed: 2150 RPM ± 10%
• Bearing Type: S-FDB Hydraulic Bearing
• Fan Air Volume: MAX 67.89 CFM
• Fan Air Pressure: MAX 2.76 mm/H2O

Acoustic Performance:

• Noise Level: MAX 32.2 dB

Insulation:

• Insulation Type: CLASS A

Connectivity:

• Power Supply Interface: 4PIN

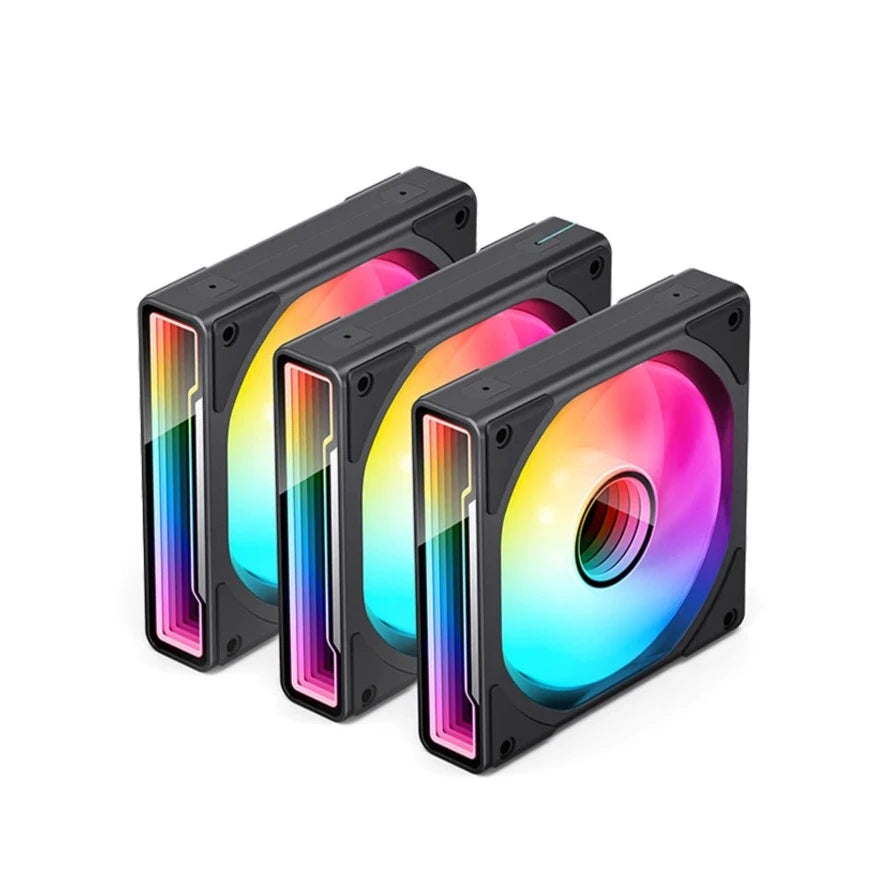

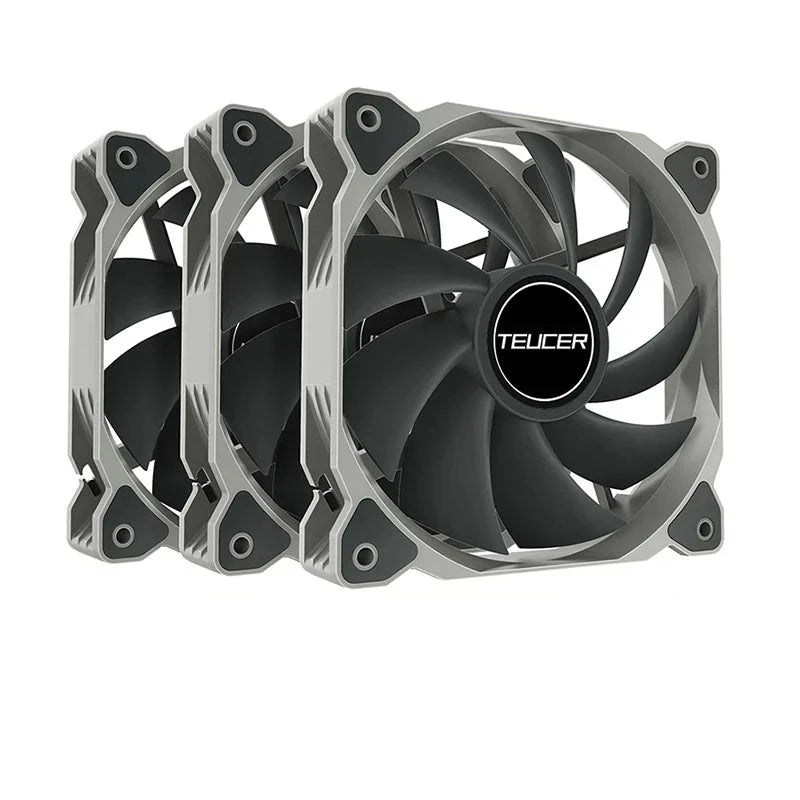

Experience incredible cooling performance with the TEUCER JM-1 360mm ARGB PC Cooling Fan. Boasting a unique design, this fan optimizes airflow to rapidly reduce your system's temperature. ARGB lighting brings your rig to life, with a range of spectacular colors and adjustable brightness. Get ready to revolutionize your PC cooling system!

Product Details:

• Brand Name: TEUCE
• Product Model: JM-1

Fan Specifications:

• Fan Size: 120mm x 120mm x 25mm
• Fan Rotation Speed: (800~2000) ± 10% RPM
• Fan Airflow: 58.36 CFM
• Fan Air Pressure: 2.07 mmH2O
• Fan Noise: 29 dB(A)
• Fan Terminal: 4Pin+3Pin (Male to Female)
• Removable Combination: 2

Bearing Type:

• Bearing Type: Hydro Bearing

Electrical Specifications:

• Rated Voltage: DC 12V
• Rated Current: FAN: 0.19A / LED: 0.288A

Wire Length:

• Wire Length: 550mm ± 10mm
