The Thermalright CORE VISION 360 AIO Water Cooler provides exceptional thermal management for your system with its advanced all-in-one liquid cooling solution. Designed to keep your CPU running at optimal temperatures even during intensive tasks, this cooler offers reliable performance you can count on.
The integrated water cooling technology efficiently transfers heat away from your processor, while the thoughtful design makes installation straightforward.
You'll appreciate the balanced combination of cooling efficiency and quiet operation, giving you peace of mind knowing your system is well-protected against thermal throttling during extended use sessions.
General Information
- Brand Name: Thermalright
- Model Number: CORE VISION 360
- Type: CPU All In One Liquid Cooler
Display Features

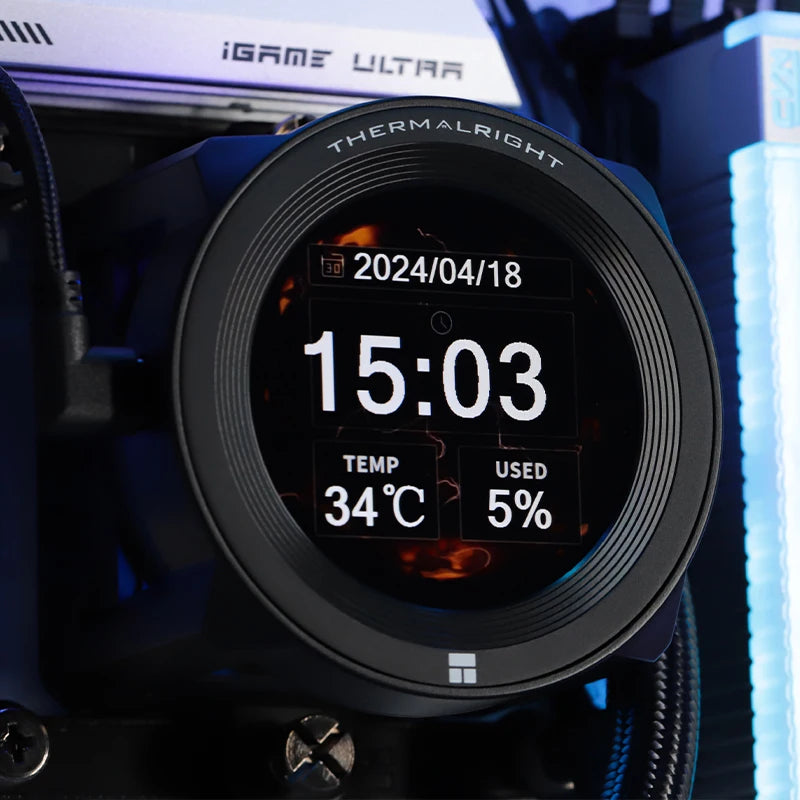

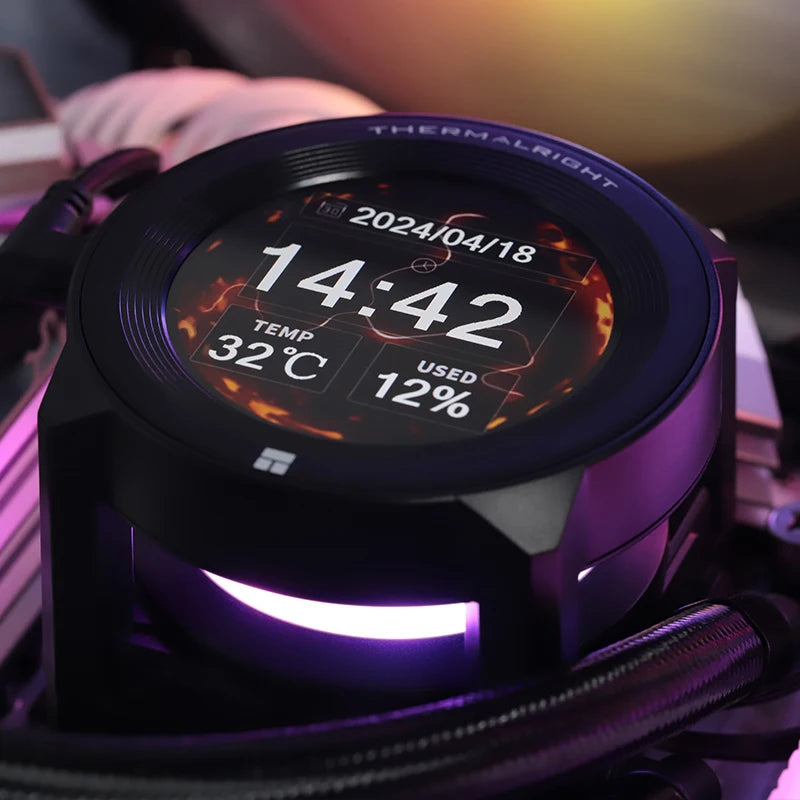

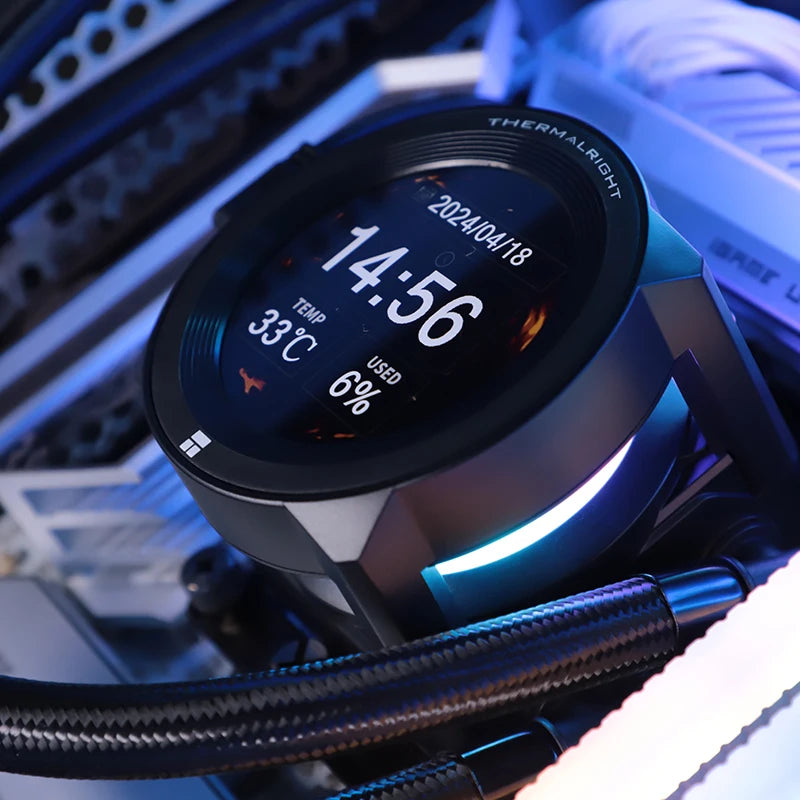

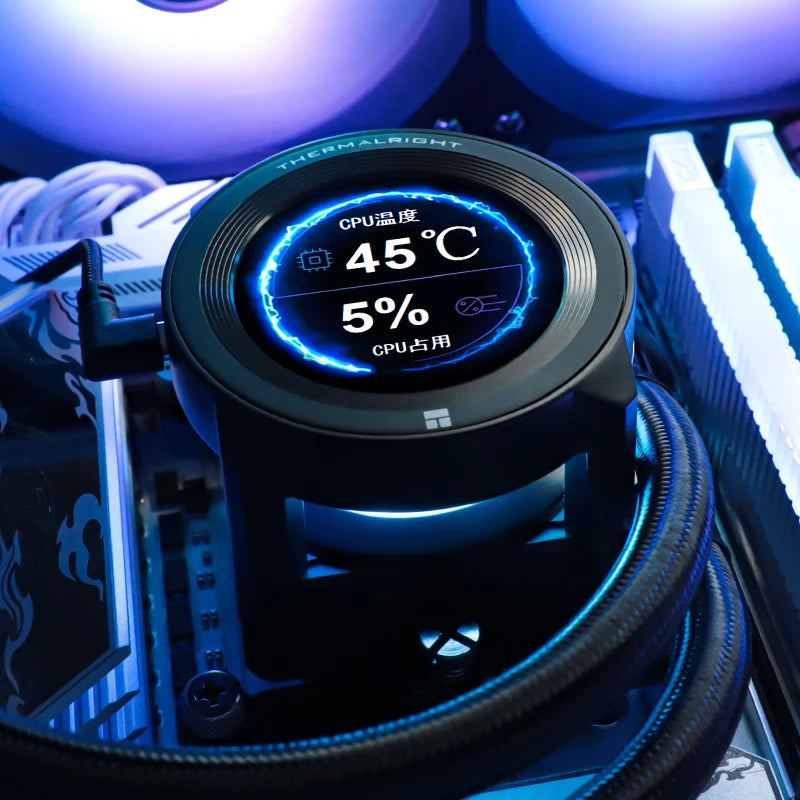

- Screen: 2.1-inch IPS LCD
- Resolution: 480 × 480
- Brightness: 450 nits
- Color Depth: 24-bit color
- Screen Features: Personalized picture animation display, color accurate, good viewing angles
Radiator Specifications
- Radiator Size: 360 mm (15.75 inches)
- Radiator Dimensions: 397 × 120 × 27 mm (15.63 × 4.72 × 1.06 inches)
- Heatsink Material: Copper & Aluminum
Cold Head Dimensions
- Cold Head Size: 69.2 × 69.2 × 60 mm (2.72 × 2.72 × 2.36 inches)
Pump System
- Pump Interface: 4-Pin
- Pump System: CoreV1.0 independent water pump framework
Fan Specifications
- Fan Model: TL-E12B-S V2
- Fan Size: 120 × 120 × 25 mm (4.72 × 4.72 × 0.98 inches)
- Fan Speed: Up to 2000 RPM (+10%)
- Fan Airflow: 72.37 CFM (122.9 m³/h)
- Fan Static Pressure: 2.87 mm H₂O
- Fan Noise Level: < 27.7 dB(A)
- Fan Bearing Type: S-FDB Bearing
- Fan Interface: 4-Pin PWM
- Lighting Interface: +5V 3-Pin ARGB
- Additional Air Volume (Note): 64.19 CFM (109.1 m³/h)
Supported CPU Platforms
- Intel LGA 1700, 1200, 115X, 1150, 1151, 1155, 1156, 2011, 2066
- AMD AM4, AM5
