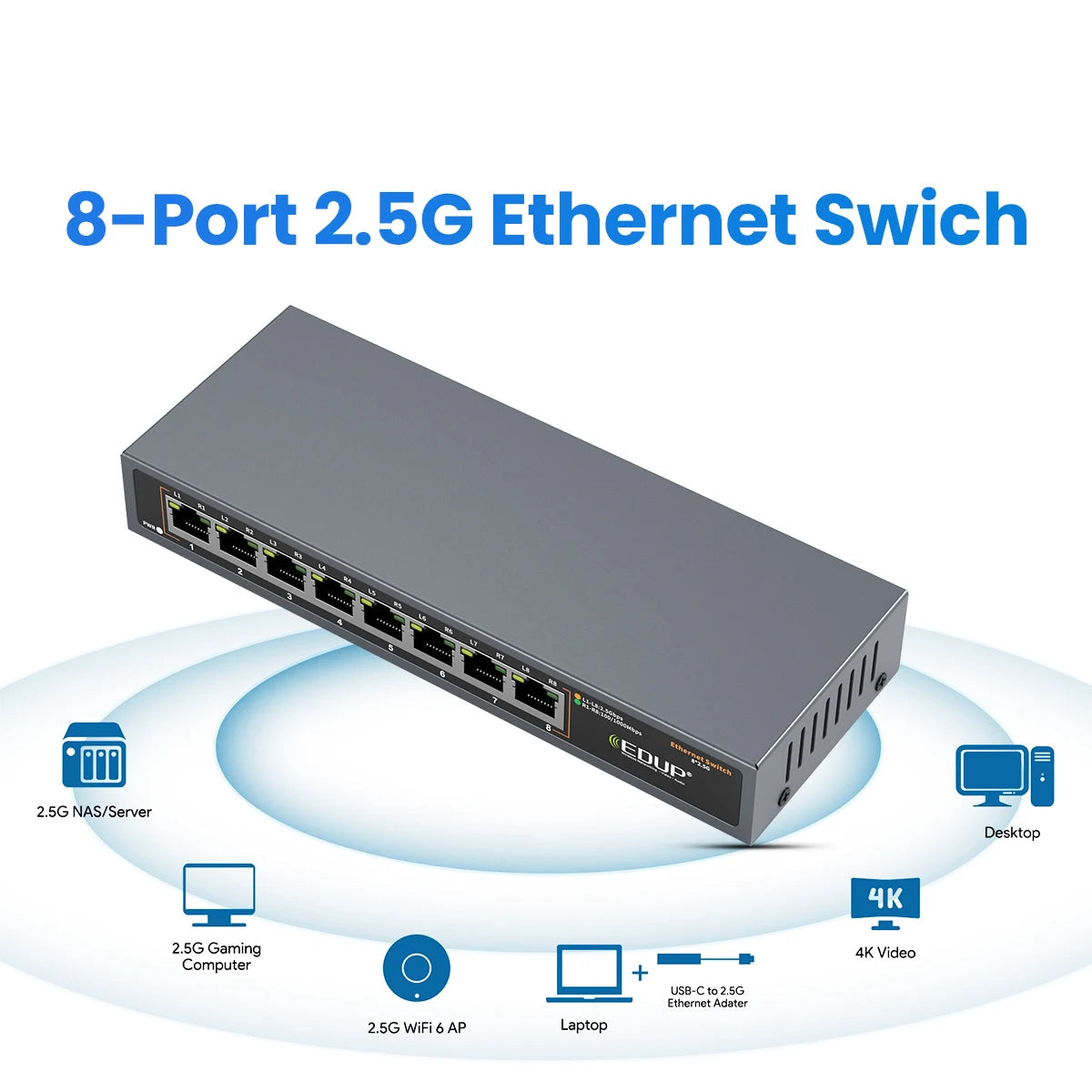

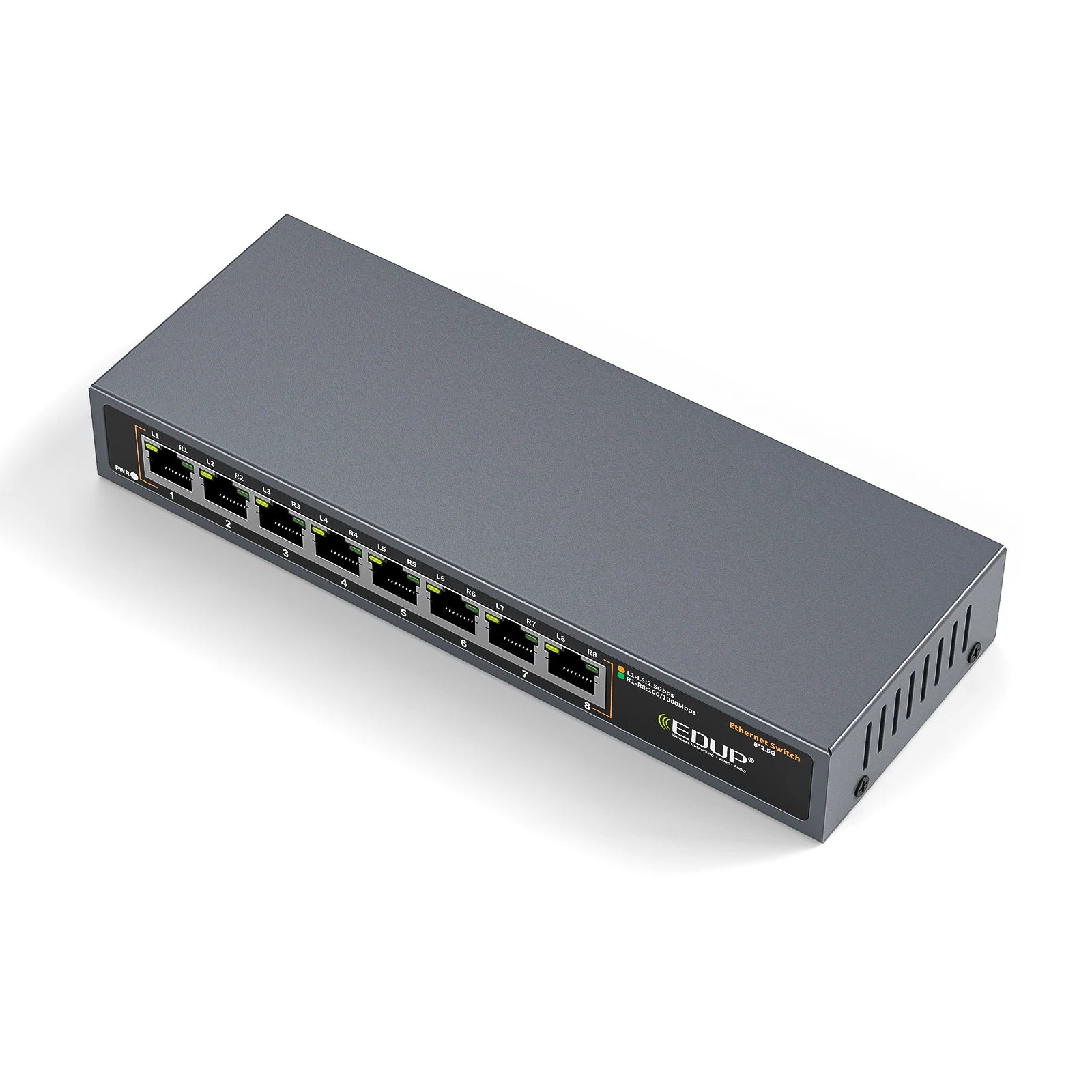

EDUP EP-SG7820 8-Port 2.5 Gigabit Ethernet Switch

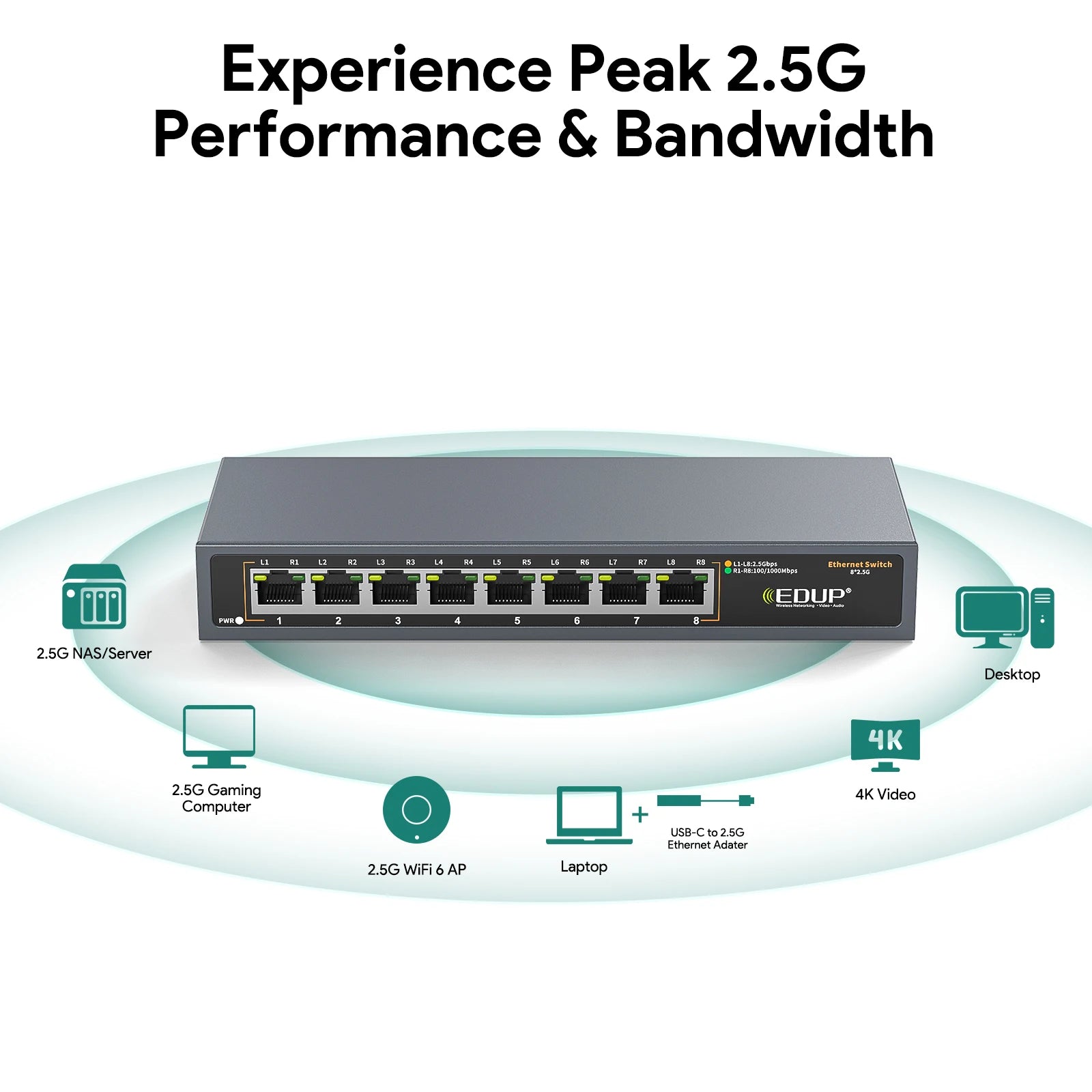

The EDUP EP-SG7820 8-Port 2.5 Gigabit Ethernet Switch delivers peak 2.5G performance, providing faster and more reliable bandwidth for your network.

Its flexible design allows for both desktop and wall mounting, adapting to your space needs with ease. Enjoy quiet operation thanks to its industry-leading fanless design, ensuring a silent environment whether at home or in the office.

Elevate your connectivity with this efficient and versatile switch, built to support your seamless network experience every day.

Brand & Model

• Brand Name: EDUP
• Model: EP-SG7820
• Certification: CE, FCC, RoHS
• Chipset: MxL86282

Standards & Interface

• Standards Compliance: IEEE 802.3 / 802.3u / 802.3ab / 802.3bz / 802.3x
• Interface: 8 × 10/100/1000/2500 Mbps RJ45 ports
• MAC Address Table: 16K entries with automatic learning

Performance

• Switching Capacity: 40 Gbps non-blocking
• Packet Forwarding Rate: Up to 39 Mpps (128-byte packet size)
• Flow Control: IEEE 802.3x full-duplex; half-duplex back pressure

Indicators & Protection

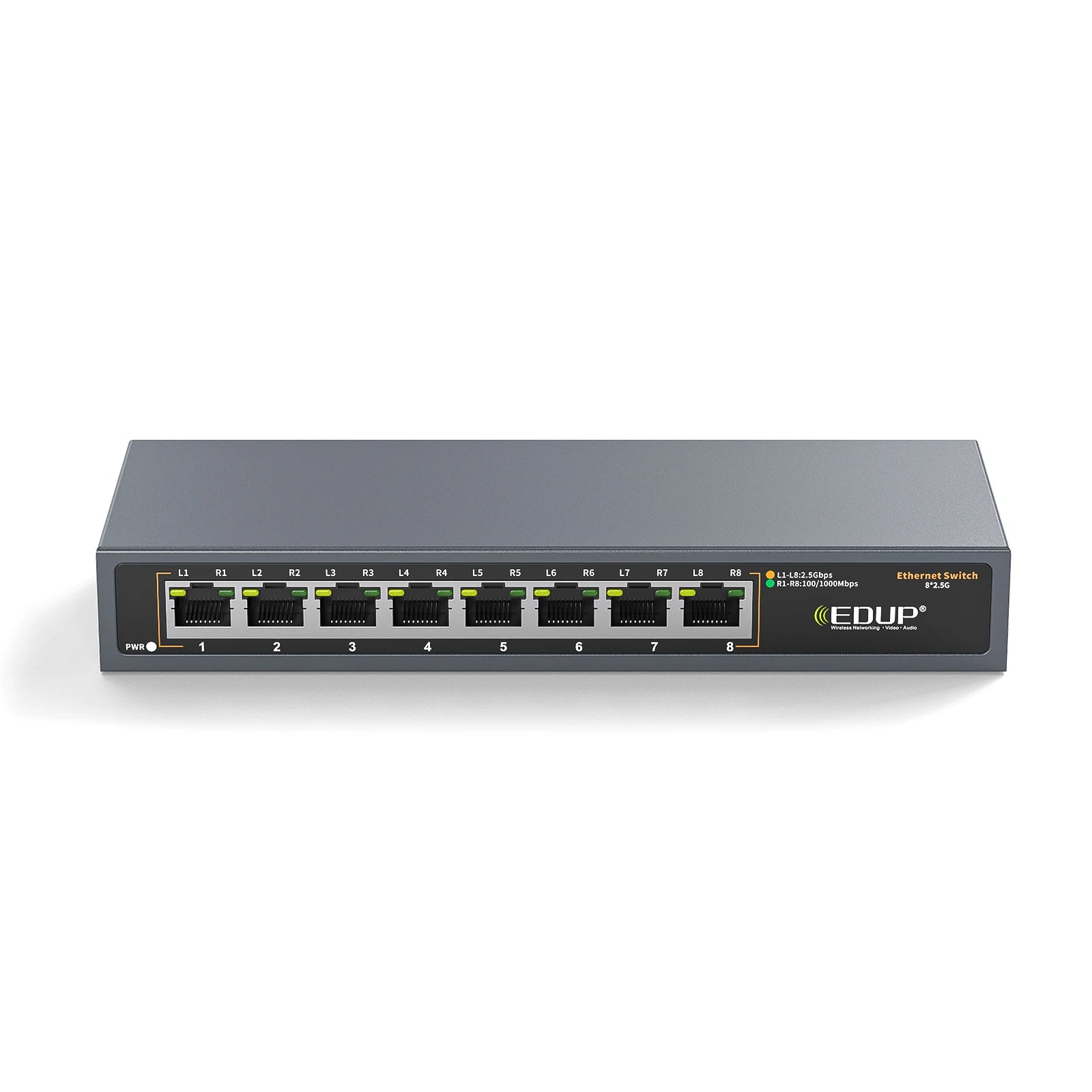

• LED Indicators: 8 × Link/Act, 1 × Power
• Surge Protection: ±6 kV

Power & Connectivity

• Power Supply: 12V DC, 1A
• Transmission Distance: Up to 100 m (328 ft)

Installation & Design

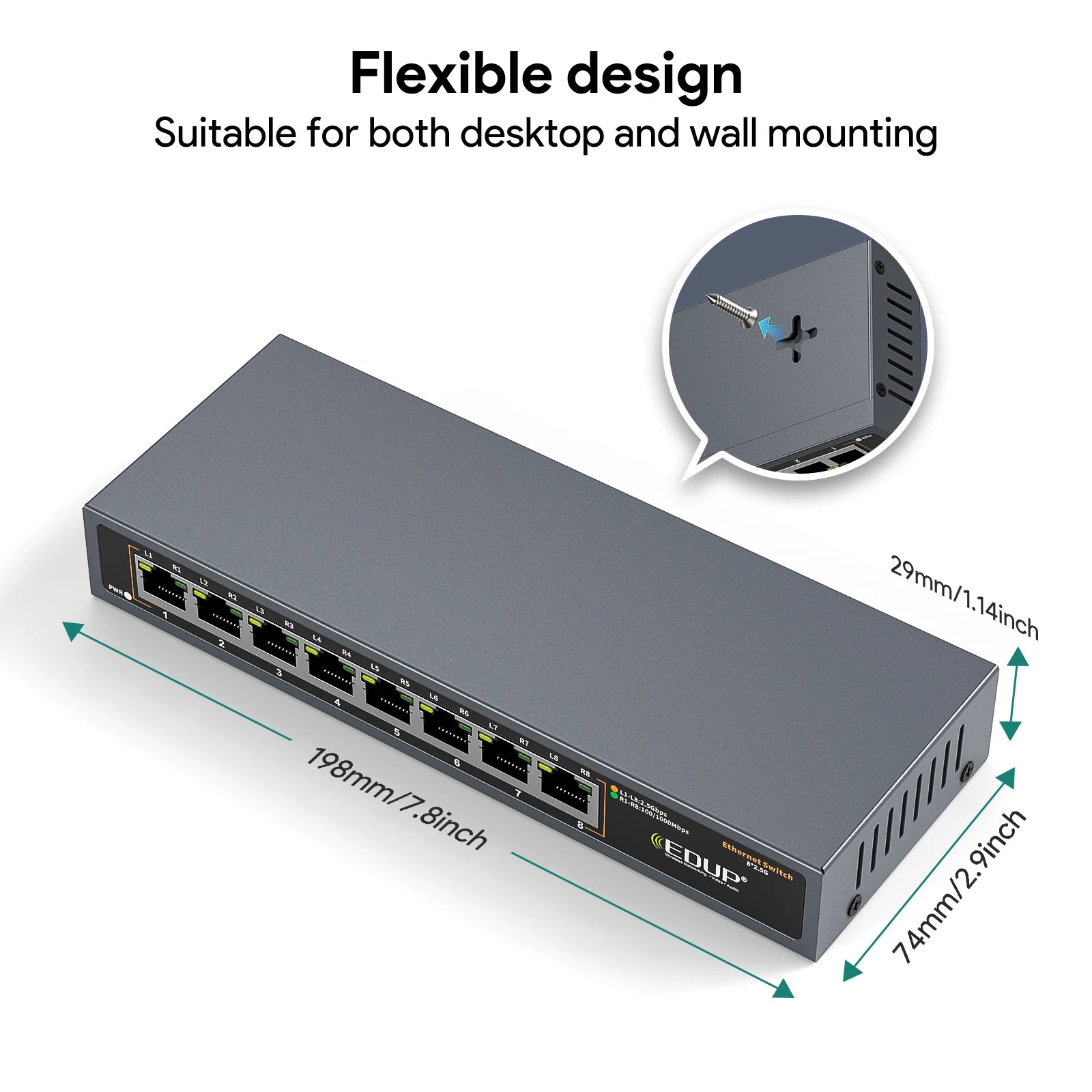

• Installation: Desktop or wall-mount
• Design: Compact and sleek
• Plug & Play: Yes, no configuration required

Environmental Specifications

• Operating Temperature: -10°C to 55°C (14°F to 131°F)
• Operating Humidity: 10%–90% RH (non-condensing)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Storage Humidity: 5%–90% RH (non-condensing)
