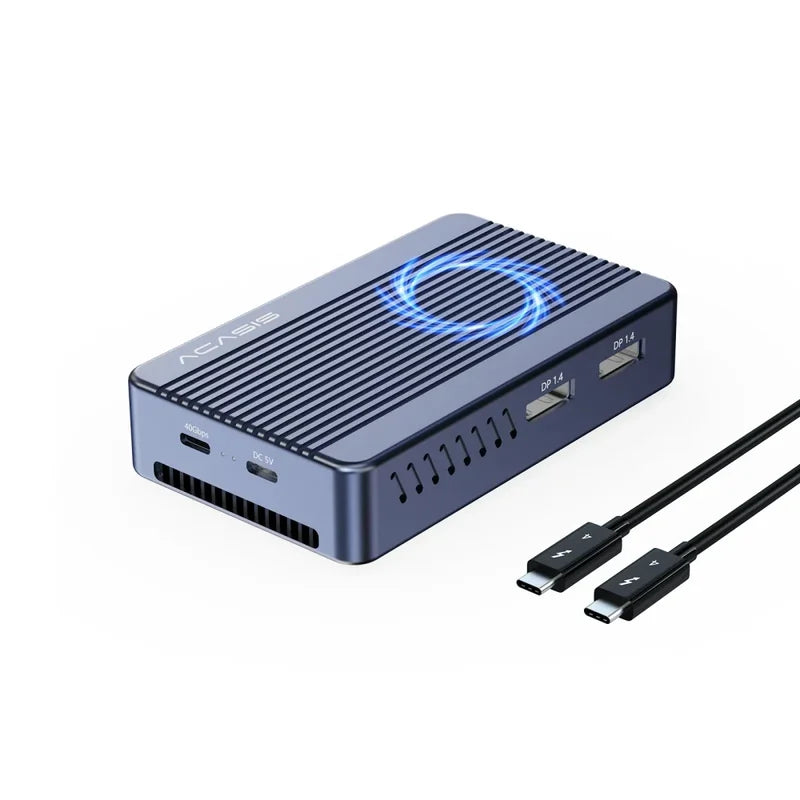

Delivery ProtectionMaximize your workspace and budget with the Acasis Thunderbolt-Compatible 6-in-1 USB-C Docking Station, combining an SSD enclosure and dock in one compact design. Easily connect your laptop and mobile devices while enjoying next-generation data transfer speeds. This versatile station supports stunning 8K HDMI output, delivering exceptional performance and convenience in a single, space-saving solution.
General Information
- Brand Name: Acasis
- Model: TBU405PLUS
- Dimensions: Approx. 118 × 57 × 18 mm
- Weight: Approx. 163 g
- Material & Cooling: Aluminum alloy body with corrugated vents; built-in silent cooling fan (noise reduced after May 2024)

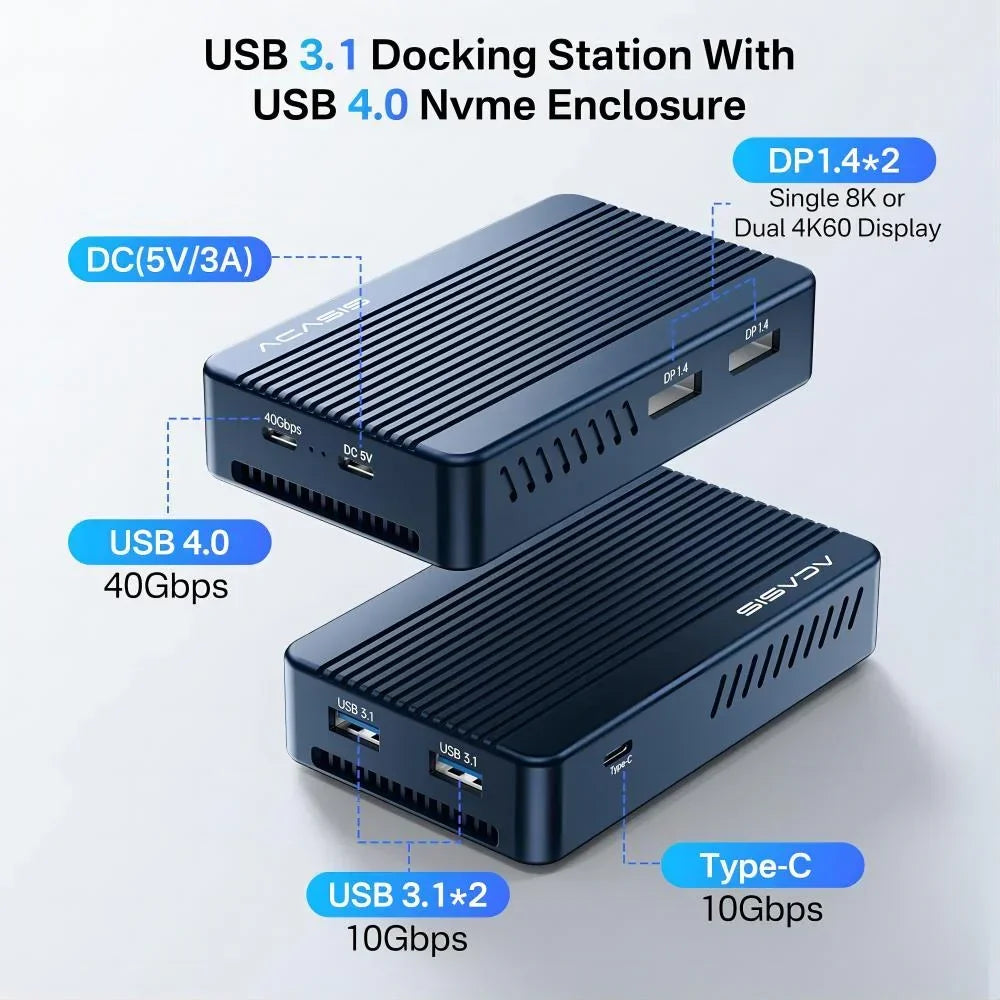

Interfaces & Ports
- 1 × Thunderbolt 3/4 (USB-C, 40 Gbps)
- 2 × DisplayPort 1.4
- 2 × USB-A 3.1 (10 Gbps)
- 1 × USB-C 3.1 (10 Gbps)
Display Support
- Up to 8K @ 60 Hz single-screen
- 4K @ 60 Hz dual-screen via DisplayPort
Storage & Performance
- Supported SSD: M.2 NVMe (M-Key or B+M-Key), 2230/2242/2260/2280 form factors, up to 8 TB capacity
- Performance: Thunderbolt bandwidth up to 40 Gbps; real-world read/write speeds ~2800 / 2734 MB/s (with Samsung 980 Pro)
Controller Chips
- Intel JHL7440 (Thunderbolt/USB4)
- Realtek RTL9210B (USB3)
Installation & Design
- Tool-free, magnetic cover design – no screws needed
Compatibility
- macOS
- Windows
- Linux
- Android
Power
- Bus-powered via Thunderbolt, no external adapter needed (single-cable convenience)
Package Includes
- Docking station
- Thunderbolt cable
- SSD thermal pads
- Rubber holders
- Quick start guide
