Experience superior performance with the Acasis 6-Port USB-C Dock featuring a built-in cooling fan that reduces heat by 50% compared to docks without fans. This advanced cooling system ensures your NVMe SSD stays cool and operates efficiently, enhancing longevity and reliability. With six versatile ports, it expands your connectivity options while maintaining optimal device temperature for uninterrupted productivity.
General Information
- Brand Name: Acasis
- Model: TBU405PROMAX
- Enclosure Material: Aluminum alloy with corrugated surface
- Dimensions: Approx. 118 × 57 × 18 mm
- Weight: Approx. 163 g

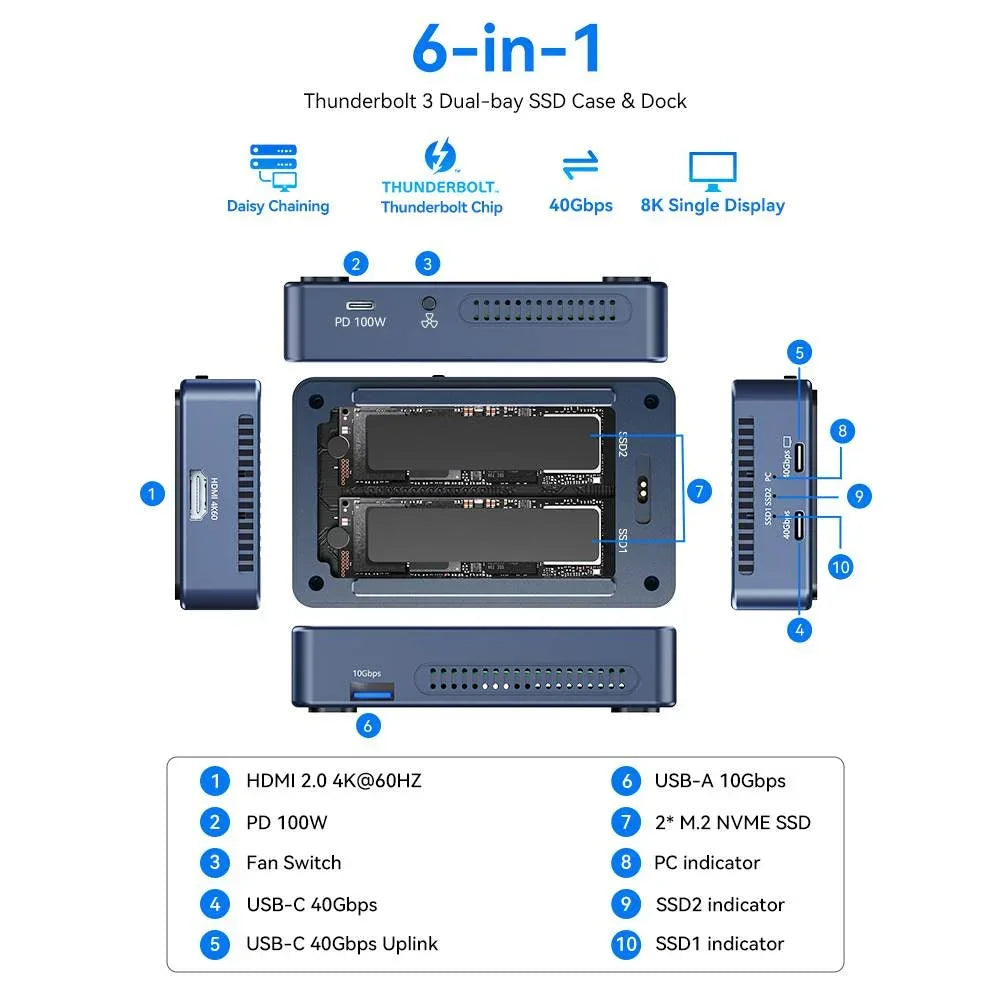

Ports & Interface
- Interface to Host: Thunderbolt 4/3 (USB-C) @ 40 Gbps
- USB Compatibility: USB 4.0

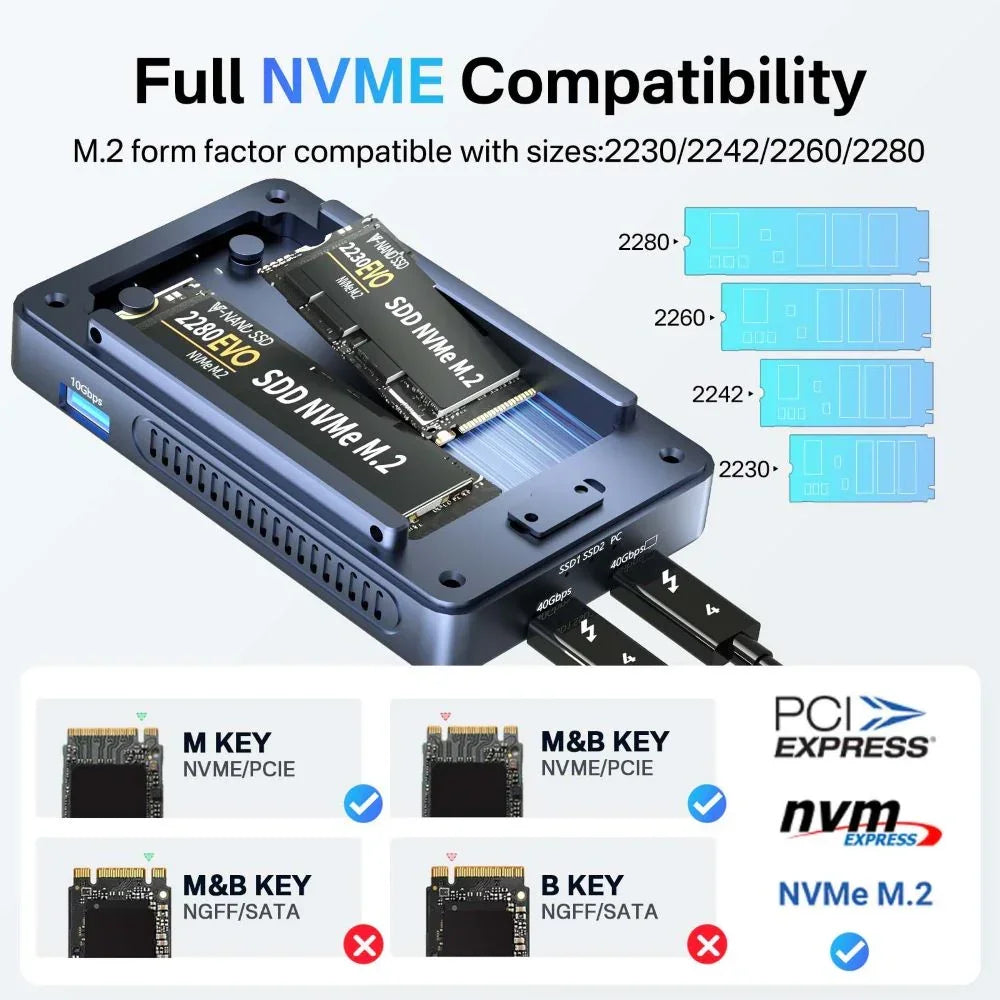

- Drive Bays: Dual M.2 NVMe (up to 2280, M-key or B+M-key)
- 1 × USB-A 3.1 (10 Gbps)
- 1 × USB-C (40 Gbps for data)
- 1 × USB-C (power input, PD pass-through up to 60–100W)
-
Storage & RAID
- Drive Bays: Dual M.2 NVMe (up to 2280, M-key or B+M-key)
- Maximum SSD Capacity: 2 × 8 TB per bay = 16 TB total
- RAID Supported: Software RAID 0, RAID 1, JBOD
Video Output

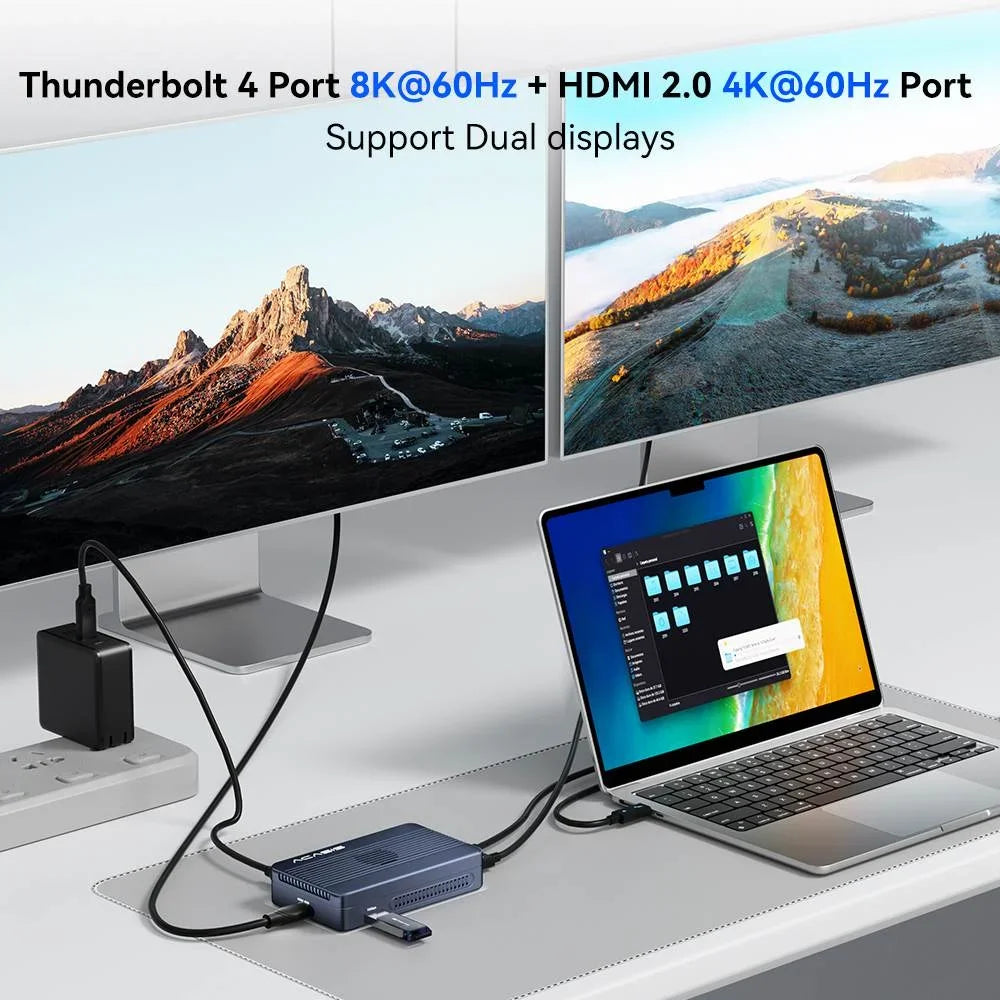

- HDMI 2.0 (single 8K@60 Hz or dual 4K@60 Hz)
Performance
- Controller Chipset: Intel-certified JHL7440 + Realtek RTL9210B dual-chip for stability
- Max Transfer Speeds: Read/write up to ~2800 MB/s in RAID 0 (single SSD ~1500 MB/s)
- Thermal Performance: SSD temperature around 35°C after 1 hour continuous use

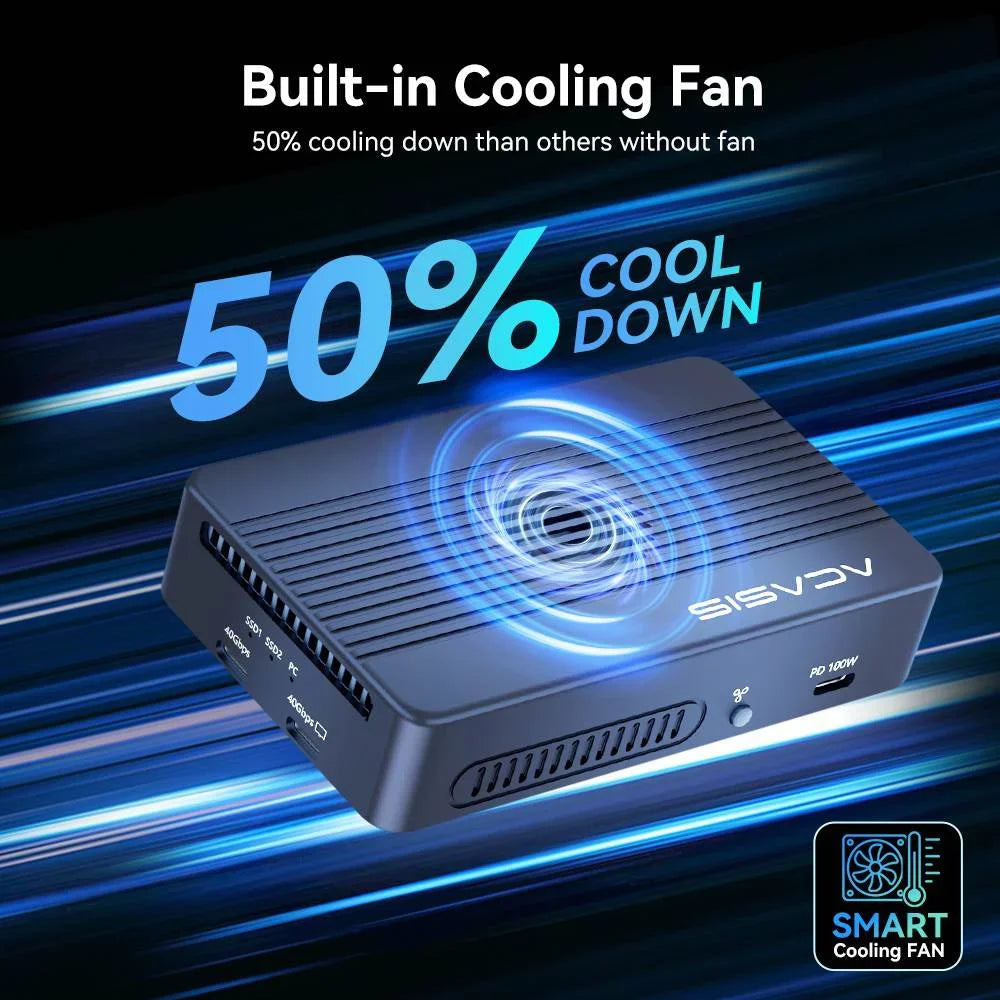

Cooling & Design
- Built-in silent fan
- Heat-dissipating housing
- Tool-free installation
- Reversible Plug & Play
Power Delivery

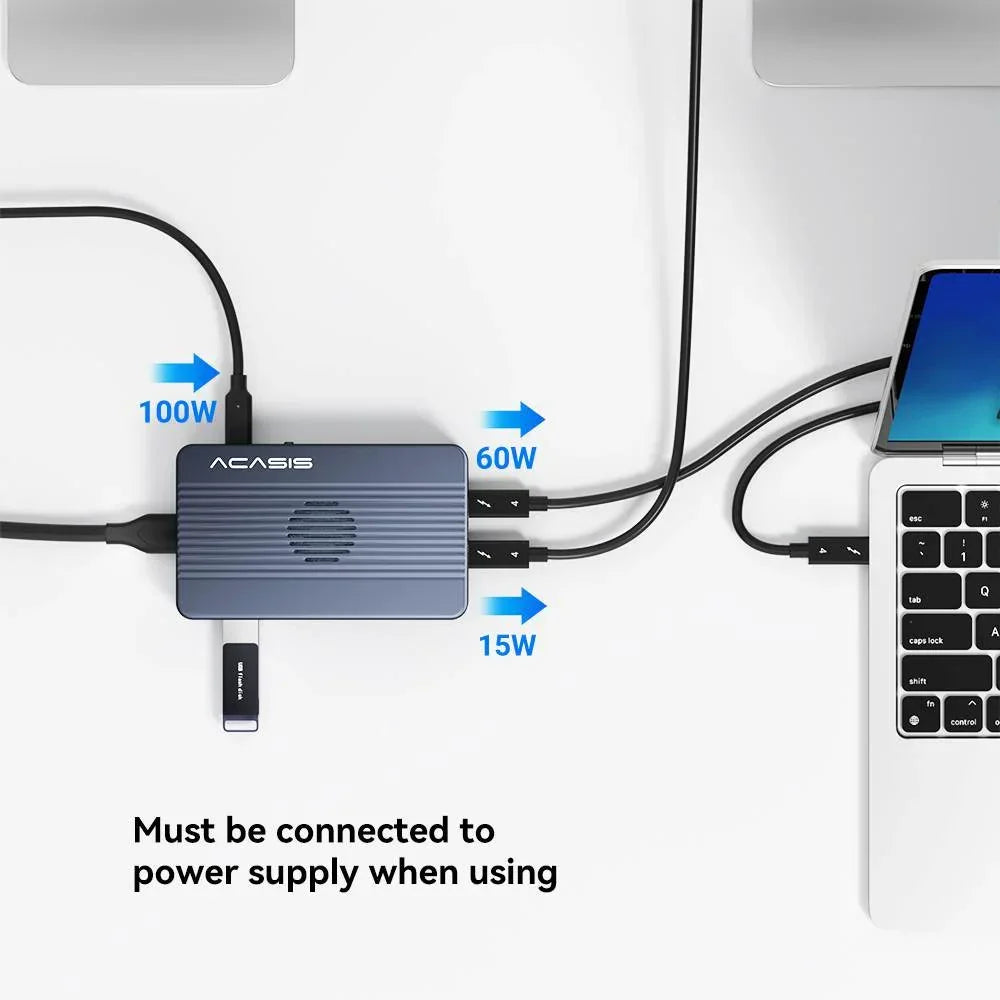

- Can supply up to 60 W to host via USB-C PD power pass-through
Operating System Compatibility
- Windows,
- macOS
- Linux
