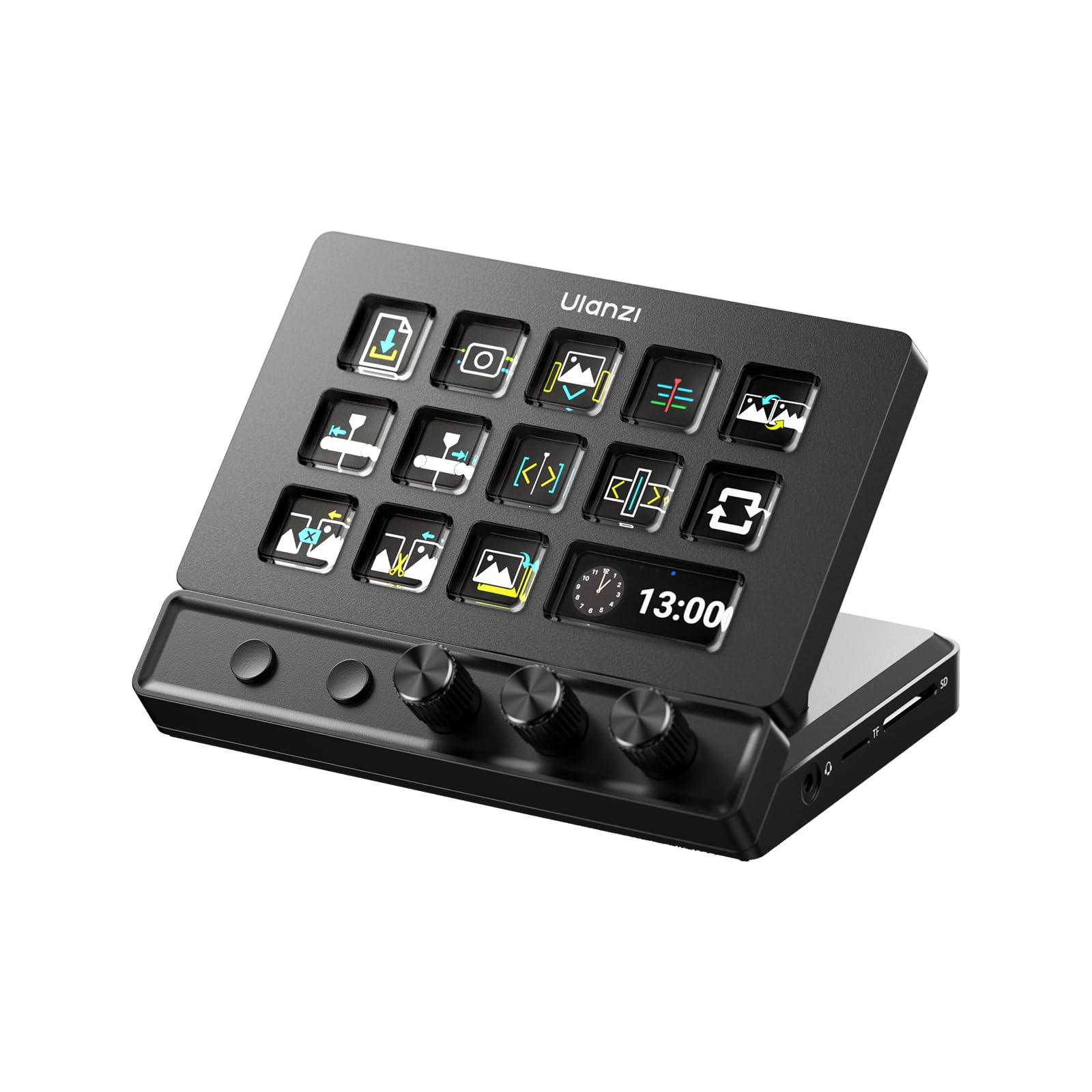

Ulanzi D200X Creative Studio Controller with 4K HDMI and Audio Jack

Master your creative workflow with the Ulanzi D200X Creative Studio Controller, a professional-grade docking station engineered for streamers, editors, and content creators who demand precision control over 4K video and audio in real time.

Switch between OBS, Premiere Pro, and DaVinci Resolve without breaking focus. Customize 14 LCD keys and 3 rotary knobs to trigger scenes, adjust levels, and manage files—all from one compact desktop hub.

This creative studio controller pairs 4K HDMI output with dual USB 3.2 ports, SD/TF card readers, and stereo audio support, making it the central command for multi-monitor setups, live streaming rigs, and professional editing bays.

Control Every Frame Without Distraction

• Instant Scene Switching: Tap customizable keys to flip between camera angles, overlays, and effects mid-stream without touching your keyboard.
• Real-Time Audio Mastery: Adjust microphone levels and monitor headphone mix through dedicated knobs while keeping your hands on creative work.

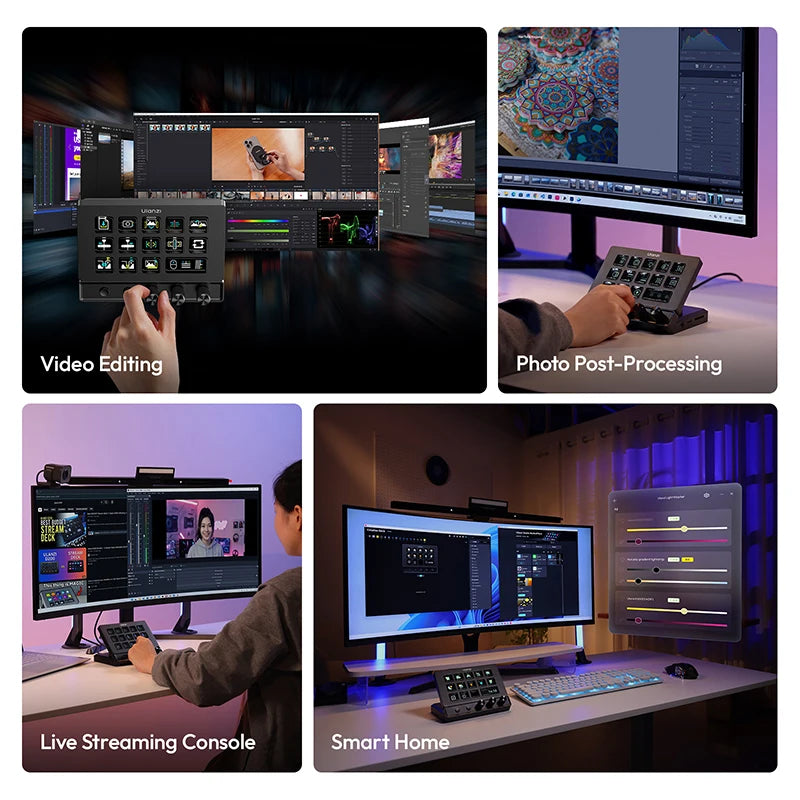

• Seamless Multi-App Control: One device commands OBS, Premiere Pro, DaVinci Resolve, Photoshop, and Lightroom—no app switching needed.
• Crystal-Clear 4K Output: Push 4K video at 60fps to external monitors or recorders with zero lag or compression artifacts.
• Portable Studio Backbone: Compact footprint with aluminum faceplate and anti-slip pads keeps your rig stable and professional-looking on any desk.

Technical Specifications

Identity & Build

• Brand: Ulanzi
• Model: D200X
• Product Type: Creative Studio Controller / 8-in-1 Docking Station
• Material: ABS + PC housing, aluminum alloy faceplate, acrylic keys, silicone anti-slip pads

Dimensions & Weight

• Dimensions: 6.02 × 4.47 × 3.86 in / 153 × 113.5 × 98 mm
• Net Weight: 16.93 oz / 480 g
• Gross Weight: 25.4 oz / 720 g

Display & Controls

• Display: 5.5-inch LCD, 960 × 540 resolution (RGB layout)

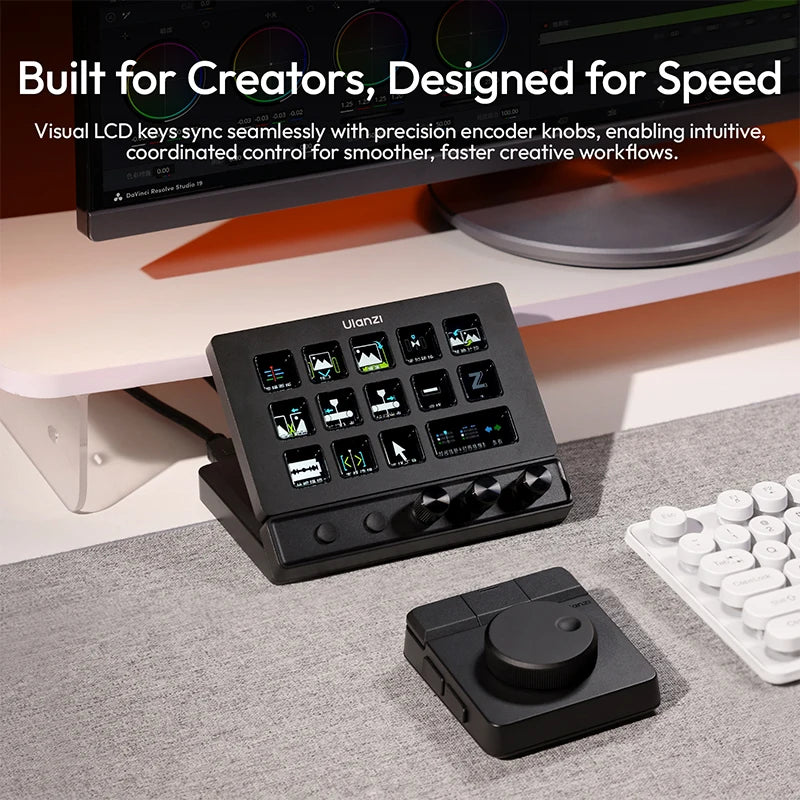

• Customizable LCD Keys: 14 programmable keys
• Rotary Encoders: 3 knobs with press + rotate functionality
• Additional Buttons: 2 customizable buttons

Power & Electrical

• Power Input: USB Type-C (5V/2A), USB Type-C PD 3.0 up to 100W
• Voltage Range: 5–20V DC
• Power Consumption: Max 10W

Connectivity & Interfaces

• HDMI Output: Up to 4K 60fps
• USB Standard: USB 3.2 Gen 2 (10 Gbps)

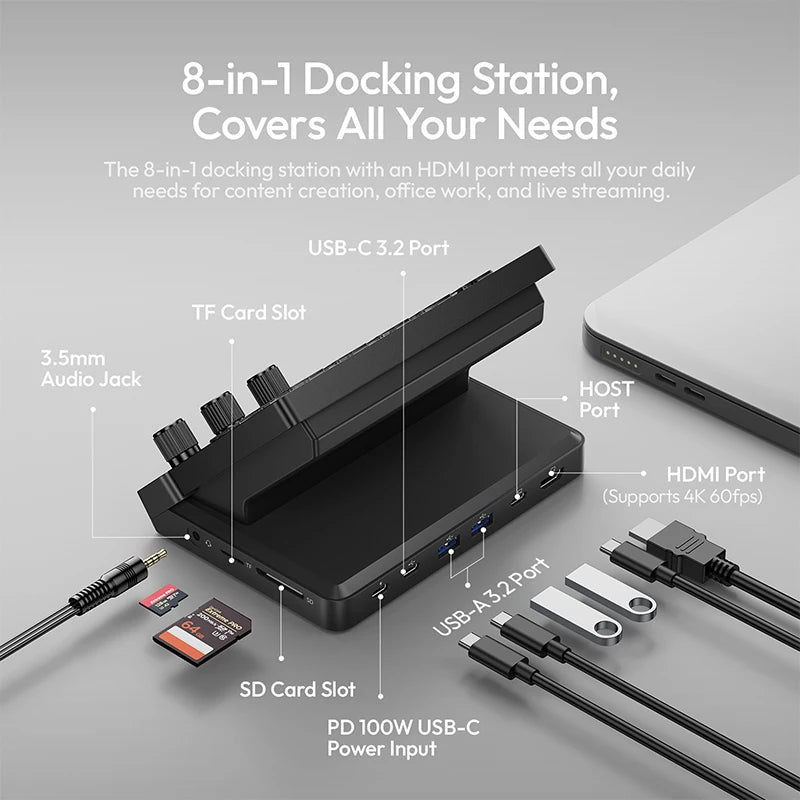

• Ports: 1× HDMI, 1× USB-C (host), 1× USB-A (host), 1× stereo audio jack, 1× TF card slot, 1× SD card slot
• Audio Support: Stereo headphone and microphone input/output
• Included Cable: USB-C data cable (1 m, video transmission supported)

Software Compatibility

• Operating Systems: Windows 10 or later, macOS Monterey 12.0 or later
• Supported Software: OBS, Adobe Premiere Pro, DaVinci Resolve, Final Cut Pro, Photoshop, Lightroom, streaming platforms, smart home platforms
